Manufacturer Part Number: | 90HBW08PT |
---|---|
Manufacturer: | Grayhill Inc. |
Product Category: | DIP Switches |
Available Quantity: | 12750 Pieces |
Unit Price: | Quote by Email |

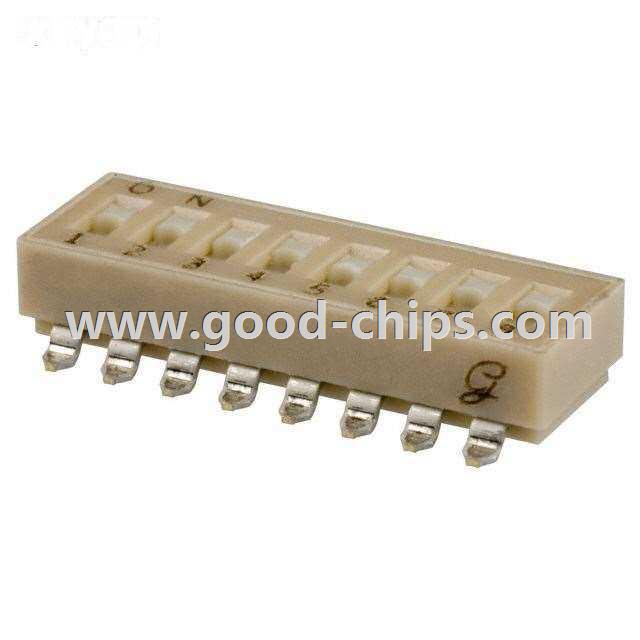

Description: | Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 90HBW08PT Datasheet |
Internal Part Number | 898-90HBW08PT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | Compliance Status by Product Type | |
PCN Design/Specification | 90 Series Plastic 01/Mar/2010 | |
PCN Other | 90 Series Material 20/Jul/2014 | |
Online Catalog | 90HB Series | |
Category | Switches | |
Family | DIP Switches | |
Manufacturer | Grayhill Inc. | |
Series | 90HB | |
Packaging | Tube | |
Part Status | Active | |
Circuit | SPST | |
Number of Positions | 8 | |
Current Rating | 25mA | |
Voltage Rating | 24VDC | |
Actuator Type | Slide (Standard) | |
Actuator Level | Flush, Recessed | |
Contact Material | Copper Alloy | |
Contact Finish | Gold | |
Height Above Board | 0.190" (4.83mm) | |
Mounting Type | Surface Mount | |
Termination Style | Gull Wing | |
Pitch | 0.100" (2.54mm), Full | |
Washable | Yes | |
Features | Tape Seal | |
Body Material | Thermoplastic | |
Length | 0.870" (22.10mm) | |
Operating Temperature | -40°C ~ 85°C | |
Mechanical Life | 2,000 Cycles | |
Electrical Life | 2,000 Cycles | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 90HBW08PT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
90HBW08PT is in stock for immediate shipping now. We are the distributor of Grayhill Inc. all series components. The condition of 90HBW08PT is new and unused, you can buy 90HBW08PT Grayhill Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 90HBW08PT.
