| Manufacturer Part Number: | 94864 |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Terminals - Spade Connectors |
| Available Quantity: | 10243 Pieces |
| Unit Price: | Quote by Email |

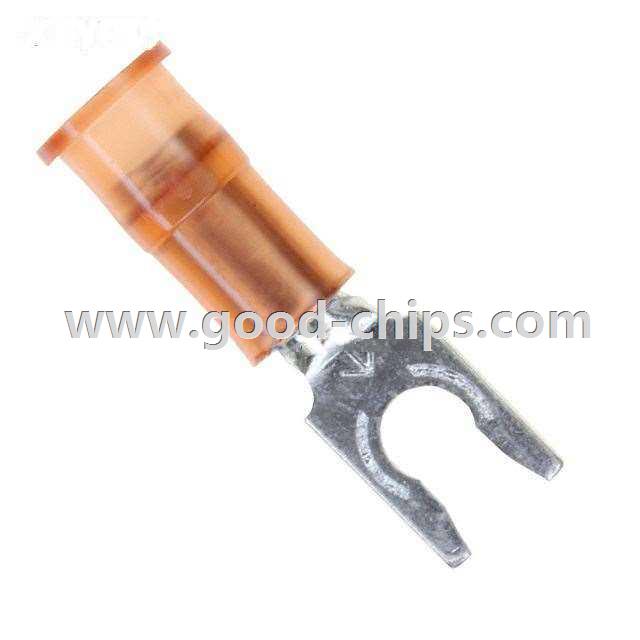

| Description: | Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 94864 Datasheet |
| Internal Part Number | 898-94864 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Highland™ Series | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Spade Connectors | |
| Manufacturer | 3M | |
| Series | Highland™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Spring, Snap | |
| Stud/Tab Size | 6 Stud | |
| Width - Outer Edges | 0.250" (6.35mm) | |
| Length - Overall | 0.870" (22.10mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 18-22 AWG | |
| Insulation | Insulated | |
| Features | Butted Seam | |
| Color | Red | |
| Contact Finish | Tin | |
| Contact Material | Copper, ETP | |
| Insulation Diameter | 0.145" (3.68mm) | |
| Material - Insulation | Polyamide (PA), Nylon | |
| Length - Ring Center to Termination | 0.250" (6.35mm) | |
| Length - Termination | 0.440" (11.18mm) | |
| Tongue Inside Opening | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 94864 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
94864 is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 94864 is new and unused, you can buy 94864 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 94864.
