Manufacturer Part Number: | A-CCS-032-Z-SM |
---|---|
Manufacturer: | Assmann WSW Components |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 23399 Pieces |
Unit Price: | Quote by Email |

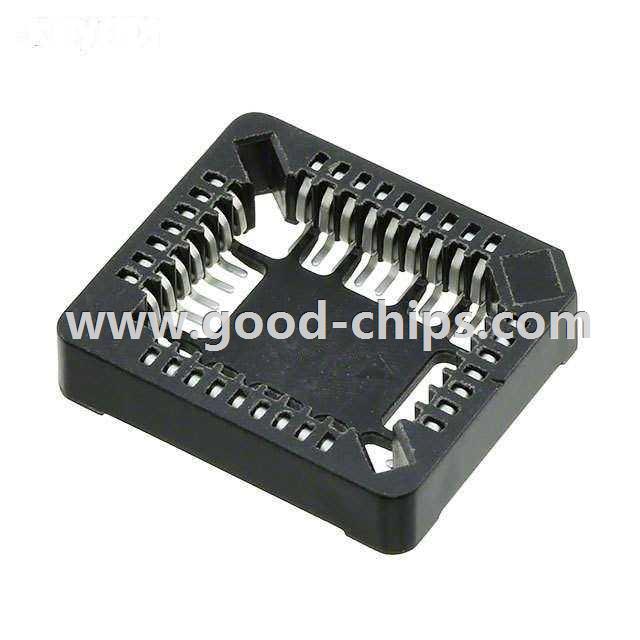

Description: | IC PLCC SOCKET 32POS TIN SMD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | A-CCS-032-Z-SM Datasheet |
Internal Part Number | 898-A-CCS-032-Z-SM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | A-CCS | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors | |
Manufacturer | Assmann WSW Components | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Type | PLCC | |
Number of Positions or Pins (Grid) | 32 (4 x 8) | |
Pitch - Mating | 0.050" (1.27mm) | |
Contact Finish - Mating | Tin | |
Contact Finish Thickness - Mating | 160µin (4.06µm) | |
Contact Material - Mating | Phosphor Bronze | |
Mounting Type | Surface Mount | |
Features | - | |
Termination | Solder | |
Pitch - Post | 0.050" (1.27mm) | |
Contact Finish - Post | Tin | |
Contact Finish Thickness - Post | 160µin (4.06µm) | |
Contact Material - Post | Phosphor Bronze | |
Housing Material | Polyamide (PA9T), Nylon 9T, Glass Filled | |
Operating Temperature | -40°C ~ 105°C | |
Termination Post Length | - | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 1A | |
Contact Resistance | 15 mOhm | |
Standard Package | 29 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | A-CCS-032-Z-SM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
A-CCS-032-Z-SM is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of A-CCS-032-Z-SM is new and unused, you can buy A-CCS-032-Z-SM Assmann WSW Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for A-CCS-032-Z-SM.
