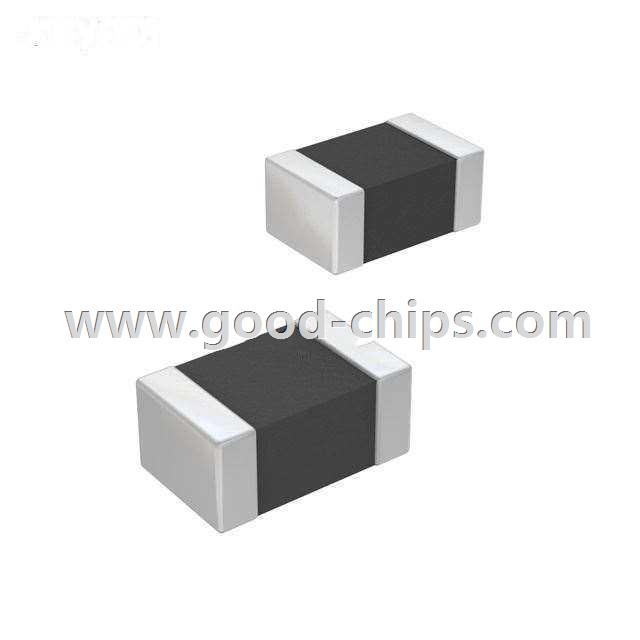

Manufacturer Part Number: | ACB2012L-015-T |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ferrite Beads and Chips |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 15 Ohm Impedance Ferrite Bead 0805 (2012 Metric) Surface Mount Signal Line 600mA 1 Lines 100 mOhm Max DCR |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ACB2012L-015-T Datasheet |
Internal Part Number | 898-ACB2012L-015-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Filters | |
Family | Ferrite Beads and Chips | |
Manufacturer | TDK Corporation | |
Series | ACB | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Filter Type | Signal Line | |
Number of Lines | 1 | |
Impedance @ Frequency | 15 Ohm @ 100MHz | |
Current Rating (Max) | 600mA | |
DC Resistance (DCR) (Max) | 100 mOhm | |
Ratings | - | |
Operating Temperature | - | |
Package / Case | 0805 (2012 Metric) | |
Mounting Type | Surface Mount | |
Height (Max) | 0.043" (1.10mm) | |
Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ACB2012L-015-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ACB2012L-015-T is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of ACB2012L-015-T is new and unused, you can buy ACB2012L-015-T TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACB2012L-015-T.
