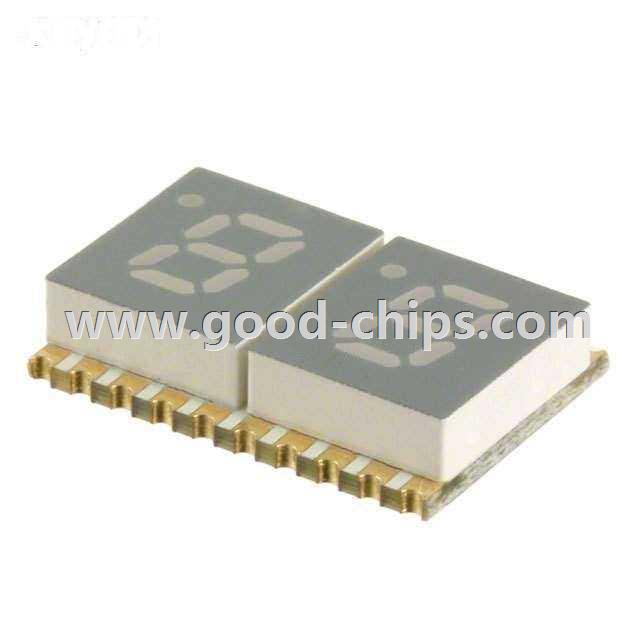

| Manufacturer Part Number: | ACDA02-41SURKWA-F01 |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 16020 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Red 7-Segment 2 Character Common Anode 1.95V 20mA 0.315" H x 0.555" W x 0.118" D (8.00mm x 14.10mm x 3.00mm) 20-SMD, No Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACDA02-41SURKWA-F01 Datasheet |
| Internal Part Number | 898-ACDA02-41SURKWA-F01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ACDx02-41x.igs ACDx02-41x.pro ACDx02-41x.sldprt ACDx02-41x.stp | |
| Online Catalog | 0.2in 2-Digit 7-Segment Display | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Number of Characters | 2 | |
| Size / Dimension | 0.315" H x 0.555" W x 0.118" D (8.00mm x 14.10mm x 3.00mm) | |
| Digit/Alpha Size | 0.20" (5.08mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Anode | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | 1.95V | |
| Current - Test | 20mA | |
| Millicandela Rating | 30mcd | |
| Wavelength - Peak | 650nm | |
| Power Dissipation (Max) | 75mW | |
| Package / Case | 20-SMD, No Lead | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACDA02-41SURKWA-F01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACDA02-41SURKWA-F01 is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of ACDA02-41SURKWA-F01 is new and unused, you can buy ACDA02-41SURKWA-F01 Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACDA02-41SURKWA-F01.
