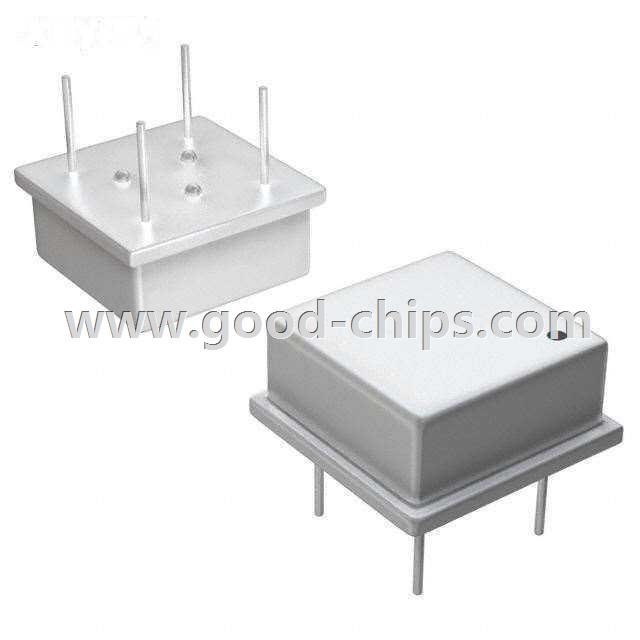

 Series.jpg)
| Manufacturer Part Number: | ACH-12.000MHZ-EK |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Oscillators |
| Available Quantity: | 9997 Pieces |
| Unit Price: | Quote by Email |
| Description: | 12MHz HCMOS, TTL XO (Standard) Oscillator Through Hole 5V 30mA Enable/Disable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACH-12.000MHZ-EK Datasheet |
| Internal Part Number | 898-ACH-12.000MHZ-EK | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ACH.pdf ACH.stp | |
| Online Catalog | ACH Series | |
| Category | Crystals and Oscillators | |
| Family | Oscillators | |
| Manufacturer | Abracon LLC | |
| Series | ACH | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | XO (Standard) | |
| Frequency | 12MHz | |
| Function | Enable/Disable | |
| Output | HCMOS, TTL | |
| Voltage - Supply | 5V | |
| Frequency Stability | ±30ppm | |
| Operating Temperature | -20°C ~ 70°C | |
| Current - Supply (Max) | 30mA | |
| Ratings | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) | |
| Height | 0.220" (5.60mm) | |
| Package / Case | 8-DIP, 4 Leads (Half Size, Metal Can) | |
| Current - Supply (Disable) (Max) | - | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACH-12.000MHZ-EK | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACH-12.000MHZ-EK is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ACH-12.000MHZ-EK is new and unused, you can buy ACH-12.000MHZ-EK Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACH-12.000MHZ-EK.
