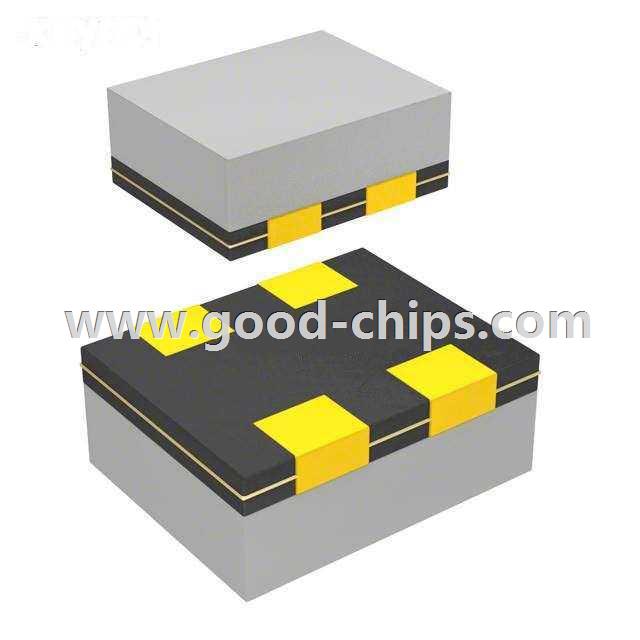

| Manufacturer Part Number: | ACMF-04-900-T |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Line Common Mode Choke Surface Mount 90 Ohm @ 100MHz 100mA DCR 2.8 Ohm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ACMF-04-900-T Datasheet |
| Internal Part Number | 898-ACMF-04-900-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ACMF-04.pdf ACMF-04.stp | |
| PCN Obsolescence/ EOL | ACMF-04 Series 01/Mar/2016 | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Abracon LLC | |
| Series | ACMF-04 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 90 Ohm @ 100MHz | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 100mA | |
| DC Resistance (DCR) (Max) | 2.8 Ohm (Typ) | |
| Voltage Rating - DC | 10V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -55°C ~ 150°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) | |
| Height (Max) | 0.026" (0.65mm) | |
| Package / Case | 0504 (1210 Metric), 4 Lead | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ACMF-04-900-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ACMF-04-900-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ACMF-04-900-T is new and unused, you can buy ACMF-04-900-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACMF-04-900-T.
