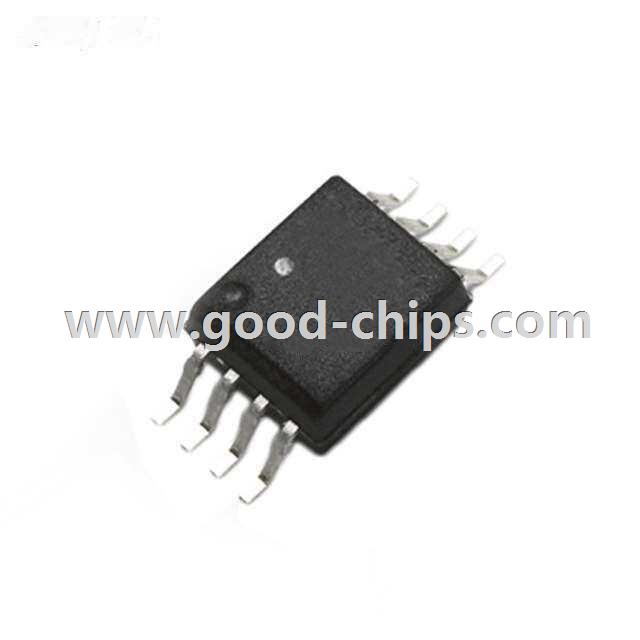

Manufacturer Part Number: | ACPL-C87A-000E |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
Available Quantity: | 10875 Pieces |
Unit Price: | Quote by Email |
Description: | Isolation Amplifier 1 Circuit Differential 8-SO |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ACPL-C87A-000E Datasheet |
Internal Part Number | 898-ACPL-C87A-000E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Mult Device Design Changes 10/Nov/2015 Molding Chg 08/Feb/2016 | |
PCN Packaging | Multiple Devices Marking/Labeling 07/Aug/2013 Marking/Labeling Revision B 14/Jan/2014 | |
Online Catalog | Isolation | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Amplifier Type | Isolation | |
Number of Circuits | 1 | |
Output Type | Differential | |
Slew Rate | - | |
Gain Bandwidth Product | - | |
-3db Bandwidth | 100kHz | |
Current - Input Bias | 1.5nA | |
Voltage - Input Offset | 300µV | |
Current - Supply | 10.5mA | |
Current - Output / Channel | 30mA | |
Voltage - Supply, Single/Dual (±) | 3 V ~ 5.5 V | |
Operating Temperature | -40°C ~ 105°C | |
Mounting Type | Surface Mount | |
Package / Case | 8-SOIC (0.268", 6.81mm Width) | |
Supplier Device Package | 8-SO | |
Standard Package | 80 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ACPL-C87A-000E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ACPL-C87A-000E is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ACPL-C87A-000E is new and unused, you can buy ACPL-C87A-000E Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ACPL-C87A-000E.
