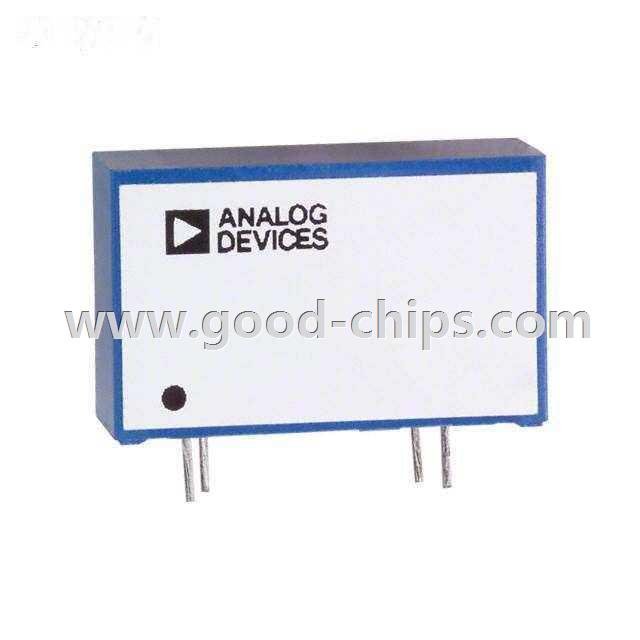

| Manufacturer Part Number: | AD246JY |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Clock/Timing - Clock Buffers, Drivers |
| Available Quantity: | 9018 Pieces |
| Unit Price: | Quote by Email |
| Description: | Clock Buffer/Driver IC 25kHz 13-SIP (4 Staggered Leads) |
| Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD246JY Datasheet |
| Internal Part Number | 898-AD246JY | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Hard Cap Encapsulation 25/Jul/2013 | |
| PCN Packaging | Shipping Tube Rev 22/Jul/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Buffer, Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | Clock/Timing - Clock Buffers, Drivers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Type | Buffer/Driver | |
| Number of Circuits | 1 | |
| Ratio - Input:Output | 1:1 | |
| Differential - Input:Output | No/No | |
| Input | Clock | |
| Output | Clock | |
| Frequency - Max | 25kHz | |
| Voltage - Supply | 14.25 V ~ 15.75 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | 13-SIP (4 Staggered Leads) | |
| Supplier Device Package | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD246JY | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD246JY is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD246JY is new and unused, you can buy AD246JY Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD246JY.
