| Manufacturer Part Number: | AD524BDZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9137 Pieces |
| Unit Price: | Quote by Email |

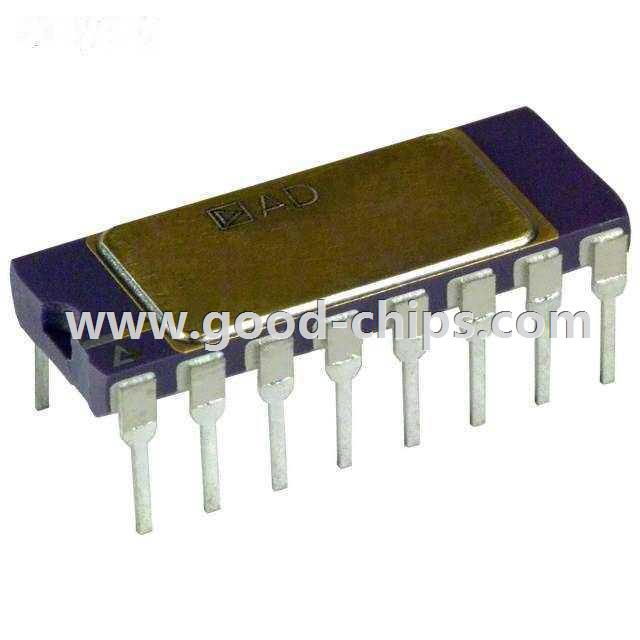

| Description: | Instrumentation Amplifier 1 Circuit 16-CDIP Side Brazed |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD524BDZ Datasheet |
| Internal Part Number | 898-AD524BDZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Common Photodiode Op-Amp Circuit Problems and Solutions Indirect Current Feedback Instrumentation Amplifier Applications Guide | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Instrumentation | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Amplifier Type | Instrumentation | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 5 V/µs | |
| Gain Bandwidth Product | 1MHz | |
| -3db Bandwidth | 1MHz | |
| Current - Input Bias | 25nA | |
| Voltage - Input Offset | 100µV | |
| Current - Supply | 3.5mA | |
| Current - Output / Channel | - | |
| Voltage - Supply, Single/Dual (±) | ±6 V ~ 18 V | |
| Operating Temperature | -25°C ~ 85°C | |
| Mounting Type | Through Hole | |
| Package / Case | 16-CDIP (0.300", 7.62mm) | |
| Supplier Device Package | 16-CDIP Side Brazed | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD524BDZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD524BDZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD524BDZ is new and unused, you can buy AD524BDZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD524BDZ.
