| Manufacturer Part Number: | AD5301BRTZ-REEL7 |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Data Acquisition - Digital to Analog Converters (DAC) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 8 Bit Digital to Analog Converter 1 SOT-23-6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD5301BRTZ-REEL7 Datasheet |
| Internal Part Number | 898-AD5301BRTZ-REEL7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Data Converter Fundamentals DAC Architectures Five Things to Know About DACs Part 1: Resolution vs. Accuracy Five Things to Know About DACs Part 2: Total Unadjusted Error (TUE) Five Things to Know About DACs Part 5: Dynamic Performance Five Things to Know About DACs Part 4: Buffering | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Digital to Analog Converters (DAC) | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Bits | 8 | |
| Number of D/A Converters | 1 | |
| Settling Time | 8µs | |
| Output Type | Voltage - Buffered | |
| Differential Output | No | |
| Data Interface | I²C | |
| Reference Type | Supply | |
| Voltage - Supply, Analog | 2.5 V ~ 5.5 V | |
| Voltage - Supply, Digital | 2.5 V ~ 5.5 V | |
| INL/DNL (LSB) | ±0.15, ±0.02 | |
| Architecture | String DAC | |
| Operating Temperature | -40°C ~ 105°C | |

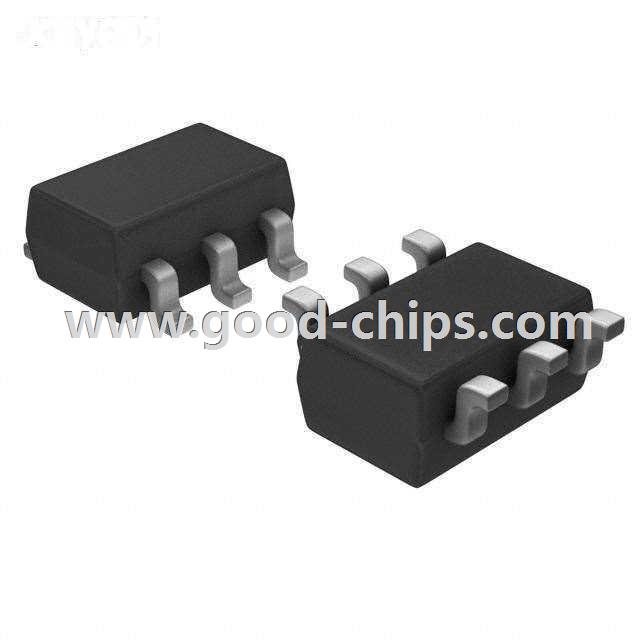

| Package / Case | SOT-23-6 | |
| Supplier Device Package | SOT-23-6 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD5301BRTZ-REEL7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD5301BRTZ-REEL7 is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD5301BRTZ-REEL7 is new and unused, you can buy AD5301BRTZ-REEL7 Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD5301BRTZ-REEL7.
