| Manufacturer Part Number: | AD549KHZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9202 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Amplifier 1 Circuit TO-99-8 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD549KHZ Datasheet |
| Internal Part Number | 898-AD549KHZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Biochemistry Analyzer Solutions Gas Detector Solution Based on NDIR and PID | |
| Product Training Modules | Common Photodiode Op-Amp Circuit Problems and Solutions Indirect Current Feedback Instrumentation Amplifier Applications Guide | |
| PCN Design/Specification | AD549 ESD Improvement 10/Apr/2013 Datashee revision 19/Aug/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Analog Devices Inc. | |
| Series | Topgate™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Amplifier Type | General Purpose | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 3 V/µs | |
| Gain Bandwidth Product | 1MHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 0.075pA | |
| Voltage - Input Offset | 150µV | |
| Current - Supply | 600µA | |
| Current - Output / Channel | 20mA | |
| Voltage - Supply, Single/Dual (±) | ±5 V ~ 18 V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Through Hole | |

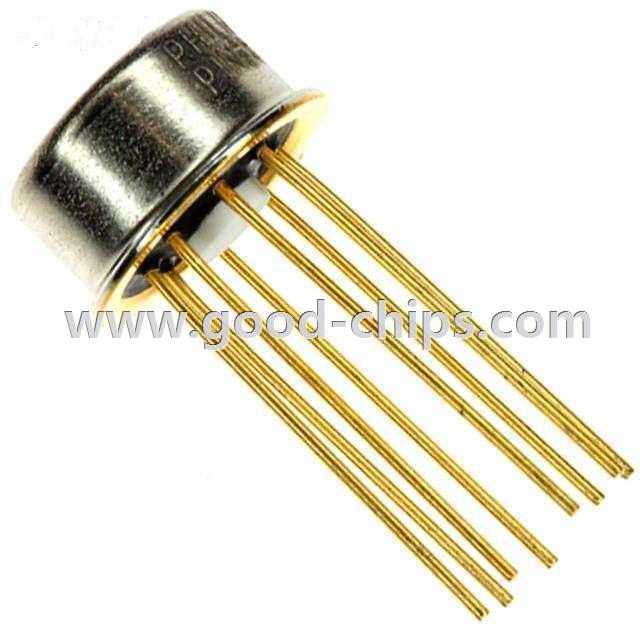

| Package / Case | TO-99-8 Metal Can | |
| Supplier Device Package | TO-99-8 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD549KHZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD549KHZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD549KHZ is new and unused, you can buy AD549KHZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD549KHZ.
