Manufacturer Part Number: | AD7723BSZ-REEL |
---|---|
Manufacturer: | Analog Devices Inc. |
Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 16 Bit Analog to Digital Converter 1 Input 1 Sigma-Delta 44-MQFP (10x10) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AD7723BSZ-REEL Datasheet |
Internal Part Number | 898-AD7723BSZ-REEL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | Site Relocation 24/Feb/2016 Assembly Relocation 06/May/2016 ChipPAC Rev 08/Aug/2016 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Analog to Digital Converters (ADC) | |
Manufacturer | Analog Devices Inc. | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Number of Bits | 16 | |
Sampling Rate (Per Second) | 1.2M | |
Number of Inputs | 1 | |
Input Type | Differential | |
Data Interface | SPI, Parallel | |
Configuration | ADC | |
Ratio - S/H:ADC | - | |
Number of A/D Converters | 1 | |
Architecture | Sigma-Delta | |
Reference Type | External, Internal | |
Voltage - Supply, Analog | 5V | |
Voltage - Supply, Digital | 5V | |
Features | - | |
Operating Temperature | -40°C ~ 85°C | |
Package / Case | 44-QFP | |

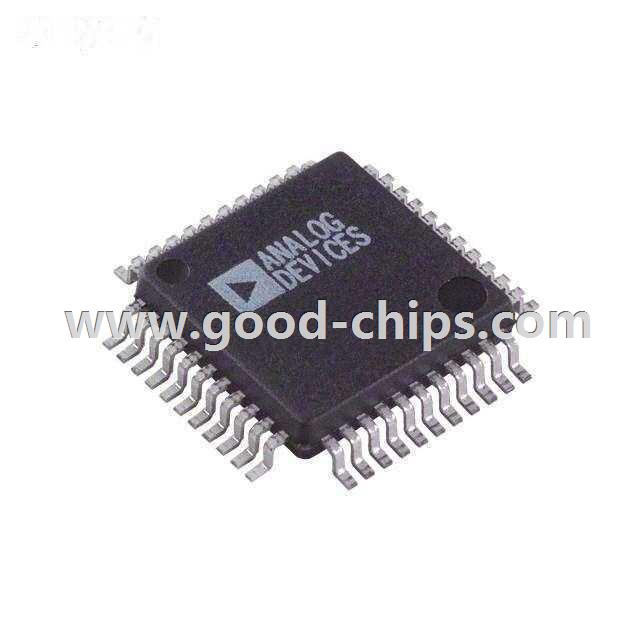

Supplier Device Package | 44-MQFP (10x10) | |
Standard Package | 800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AD7723BSZ-REEL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AD7723BSZ-REEL is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD7723BSZ-REEL is new and unused, you can buy AD7723BSZ-REEL Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD7723BSZ-REEL.
