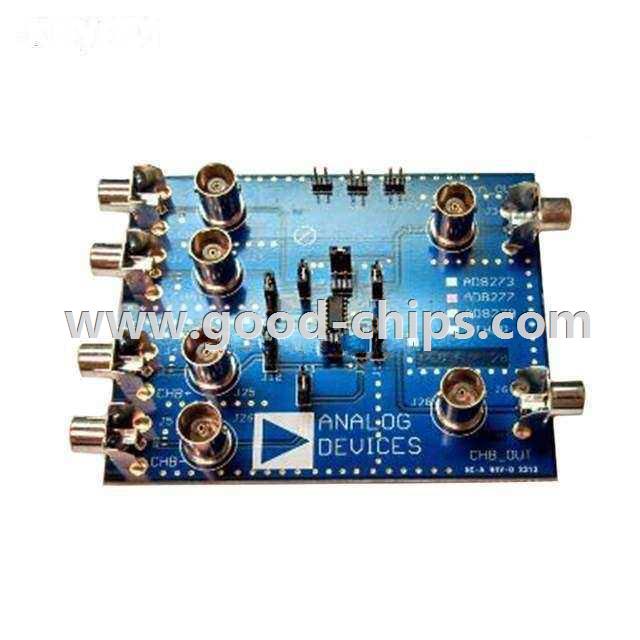

| Manufacturer Part Number: | AD8277-EVALZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Op Amps |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |
| Description: | AD8277 2 - Dual Channels per IC Difference Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD8277-EVALZ Datasheet |
| Internal Part Number | 898-AD8277-EVALZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | AD8273, AD8277 and AD8279 Evaluation Boards | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Op Amps | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Active | |
| Channels per IC | 2 - Dual | |
| Amplifier Type | Difference | |
| Output Type | Single-Ended, Rail-to-Rail | |
| Slew Rate | 1.1 V/µs | |
| -3db Bandwidth | 550kHz | |
| Current - Output / Channel | 15mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Current - Supply (Main IC) | 200µA | |
| Voltage - Supply, Single/Dual (±) | 2 V ~ 36 V, ±2 V ~ 18 V | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | AD8277 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD8277-EVALZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD8277-EVALZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD8277-EVALZ is new and unused, you can buy AD8277-EVALZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD8277-EVALZ.
