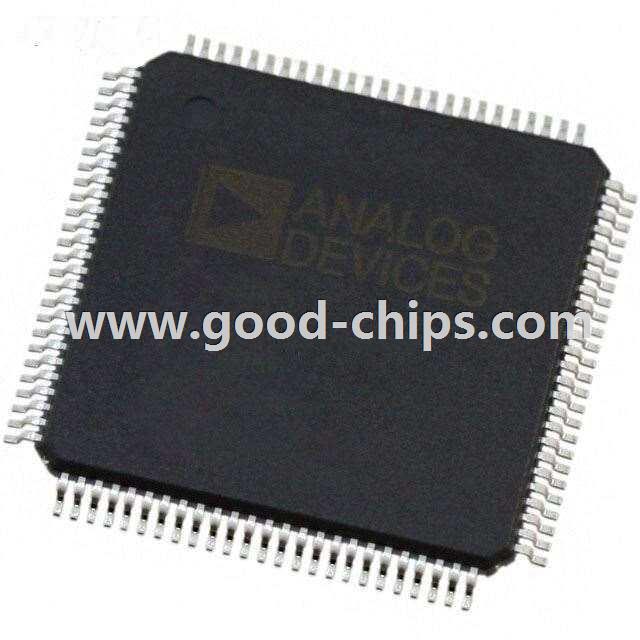

| Manufacturer Part Number: | AD9276BSVZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Data Acquisition - ADCs/DACs - Special Purpose |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |
| Description: | AAF, ADC, Demodulator, LNA, VGA 12 bit 10M ~ 80M SPI 100-TQFP-EP (14x14) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD9276BSVZ Datasheet |
| Internal Part Number | 898-AD9276BSVZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Solution for Ultrasonic Non-Destructive Testing Medical Ultrasound Solutions | |
| PCN Design/Specification | Assembly Site/Qual Data Rev E 15/Mar/2016 | |
| PCN Assembly/Origin | Assembly Site Transfer 10/Dec/2014 Assembly Site Revision A 22/Jun/2015 Assembly Site Revision B 03/Aug/2015 Assembly Site Chg 04/Jan/2016 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Medical Imaging Ultrasound, Radar | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - ADCs/DACs - Special Purpose | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | AAF, ADC, Demodulator, LNA, VGA | |
| Resolution (Bits) | 12 b | |
| Sampling Rate (Per Second) | 10M ~ 80M | |
| Data Interface | SPI | |
| Voltage Supply Source | Analog and Digital | |
| Voltage - Supply | 1.8V, 3V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 100-TQFP Exposed Pad | |
| Supplier Device Package | 100-TQFP-EP (14x14) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD9276BSVZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD9276BSVZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD9276BSVZ is new and unused, you can buy AD9276BSVZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD9276BSVZ.
