| Manufacturer Part Number: | AD9643-250EBZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

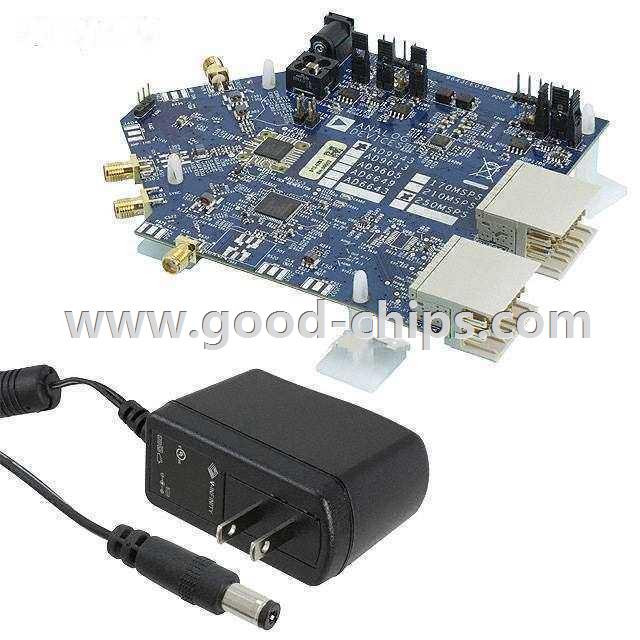

| Description: | AD9643 - 14 Bit 250M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AD9643-250EBZ Datasheet |
| Internal Part Number | 898-AD9643-250EBZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | AD6643/49, AD9613/43 Eval Brd Schematics AD6643/49, AD9613/43 Gerber Files Development Tool Selector | |
| Online Catalog | AD9643 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Active | |
| Number of A/D Converters | 2 | |
| Number of Bits | 14 | |
| Sampling Rate (Per Second) | 250M | |
| Data Interface | SPI | |
| Input Range | 1.4 ~ 2 Vpp | |
| Power (Typ) @ Conditions | 785mW @ 250MSPS | |
| Utilized IC / Part | AD9643 | |
| Supplied Contents | Board, Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AD9643-250EBZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AD9643-250EBZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of AD9643-250EBZ is new and unused, you can buy AD9643-250EBZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AD9643-250EBZ.
