| Manufacturer Part Number: | ADCMP566BCPZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Linear - Comparators |
| Available Quantity: | 9299 Pieces |
| Unit Price: | Quote by Email |
| Description: | Comparator with Latch Complementary, Differential, ECL, Open-Emitter 32-LFCSP (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADCMP566BCPZ Datasheet |
| Internal Part Number | 898-ADCMP566BCPZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Assembly Site Revision C 09/Dec/2014 | |
| PCN Other | Multiple Changes 17/Oct/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Comparators - 2 elements | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Comparators | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | with Latch | |
| Number of Elements | 2 | |
| Output Type | Complementary, Differential, ECL, Open-Emitter | |
| Voltage - Supply, Single/Dual (±) | ±4.75 V ~ 5.25 V | |
| Voltage - Input Offset (Max) | 5mV @ -5.2V, 5V | |
| Current - Input Bias (Max) | 42µA @ -5.2V,5V | |
| Current - Output (Typ) | 30mA | |
| Current - Quiescent (Max) | 18mA, 85mA | |
| CMRR, PSRR (Typ) | 69dB CMRR | |
| Propagation Delay (Max) | 0.29ns | |
| Hysteresis | ±1mV | |
| Operating Temperature | -40°C ~ 85°C | |

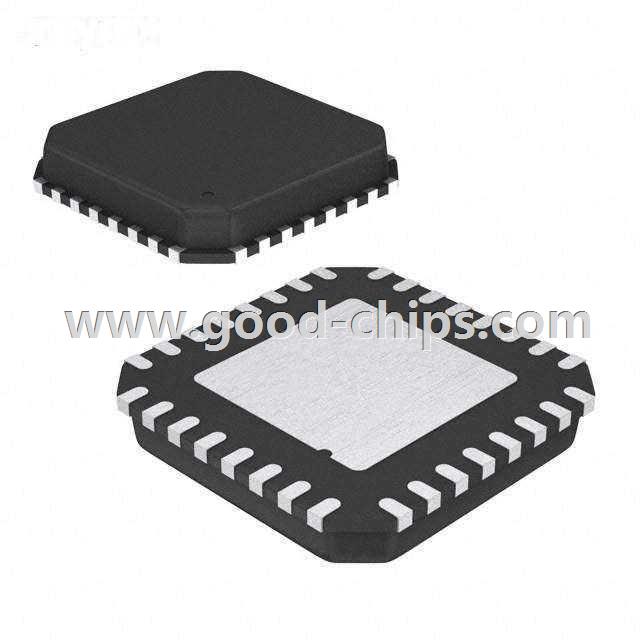

| Package / Case | 32-WFQFN Exposed Pad, CSP | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 32-LFCSP (5x5) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADCMP566BCPZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADCMP566BCPZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADCMP566BCPZ is new and unused, you can buy ADCMP566BCPZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADCMP566BCPZ.
