| Manufacturer Part Number: | ADG528AKP |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9108 Pieces |
| Unit Price: | Quote by Email |
| Description: | 1 Circuit IC Switch 8:1 450 Ohm 20-PLCC (9x9) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADG528AKP Datasheet |
| Internal Part Number | 898-ADG528AKP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switch Fundamentals | |
| Featured Product | ADG52xx/54xx Switches and Multiplexers | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Multiplexer/Demultiplexer | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Switch Circuit | - | |
| Multiplexer/Demultiplexer Circuit | 8:1 | |
| Number of Circuits | 1 | |
| On-State Resistance (Max) | 450 Ohm | |
| Channel-to-Channel Matching (ΔRon) | 22.5 Ohm | |
| Voltage - Supply, Single (V+) | 10.8 V ~ 16.5 V | |
| Voltage - Supply, Dual (V±) | ±10.8 V ~ 16.5 V | |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns | |
| -3db Bandwidth | - | |
| Charge Injection | 4pC | |
| Channel Capacitance (CS(off), CD(off)) | 5pF, 22pF | |
| Current - Leakage (IS(off)) (Max) | 1nA | |
| Crosstalk | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

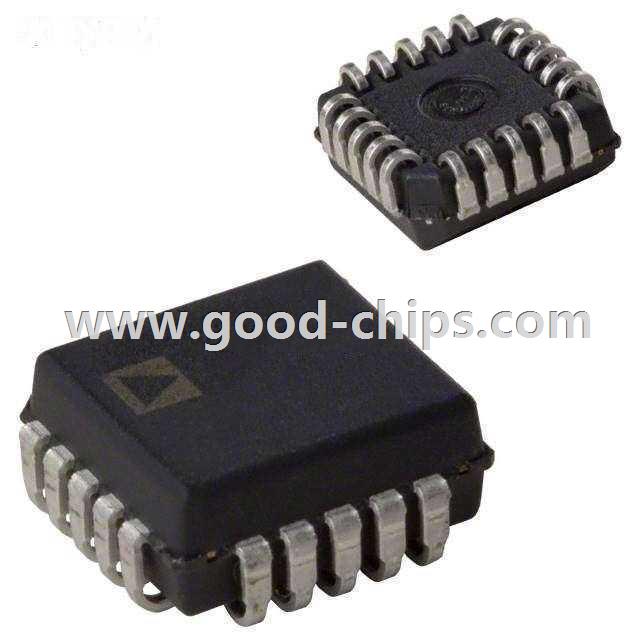

| Package / Case | 20-LCC (J-Lead) | |
| Supplier Device Package | 20-PLCC (9x9) | |
| Standard Package | 49 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADG528AKP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADG528AKP is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADG528AKP is new and unused, you can buy ADG528AKP Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADG528AKP.
