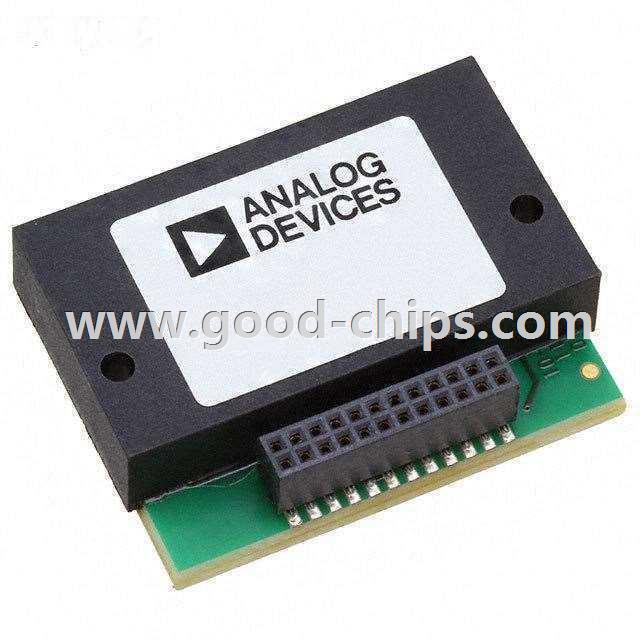

| Manufacturer Part Number: | ADIS16305AMLZ |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Motion Sensors - Gyroscopes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Gyroscope X (Pitch), Y (Roll), Z (Yaw) ±75, 150, 300 330Hz SPI Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADIS16305AMLZ Datasheet |
| Internal Part Number | 898-ADIS16305AMLZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | MEMS Based Inertial Measurement Units | |
| PCN Obsolescence/ EOL | ADIS163xx Device Obs 04/Apr/2016 | |
| Online Catalog | ADIS16305 | |
| Category | Sensors, Transducers | |
| Family | Motion Sensors - Gyroscopes | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Last Time Buy | |
| Type | Digital | |
| Axis | X (Pitch), Y (Roll), Z (Yaw) | |
| Range °/s | ±75, 150, 300 | |
| Sensitivity (LSB/(°/s)) | 20 ~ 80 | |
| Sensitivity (mV/°/s) | - | |
| Bandwidth | 330Hz | |
| Output Type | SPI | |
| Voltage - Supply | 4.75 V ~ 5.25 V | |
| Current - Supply | 42mA | |
| Features | Adjustable Bandwidth, Sleep Mode, Temperature Sensor | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Package / Case | Module | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADIS16305AMLZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADIS16305AMLZ is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADIS16305AMLZ is new and unused, you can buy ADIS16305AMLZ Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADIS16305AMLZ.
