Manufacturer Part Number: | ADM00468 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation Boards - Linear Voltage Regulators |
Available Quantity: | 9019 Pieces |
Unit Price: | Quote by Email |
Description: | MCP1710 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ADM00468 Datasheet |
Internal Part Number | 898-ADM00468 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
PCN Design/Specification | MCP1710 Datasheet 11/Jul/2013 | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |

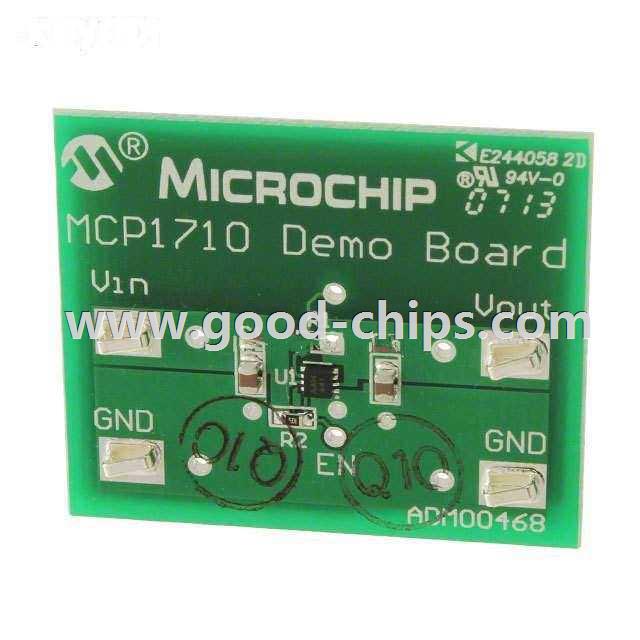

Online Catalog | MCP1710 Demo Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Linear Voltage Regulators | |
Manufacturer | Microchip Technology | |
Series | - | |
Part Status | Active | |
Channels per IC | 1 - Single | |
Voltage - Output | - | |
Current - Output | 200mA | |
Voltage - Input | - | |
Regulator Type | Positive Fixed | |
Operating Temperature | -40°C ~ 85°C | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | MCP1710 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ADM00468 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ADM00468 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00468 is new and unused, you can buy ADM00468 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00468.
