| Manufacturer Part Number: | ADM00505 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

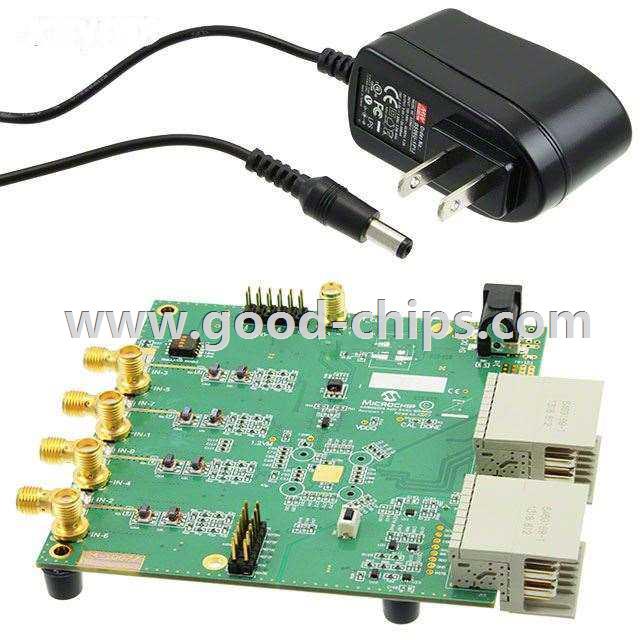

| Description: | MCP37D31-200 - 16 Bit 200M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00505 Datasheet |
| Internal Part Number | 898-ADM00505 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | ADM00505 Gerbers ADM00505 BOM ADM00505 Schematics Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP37X3X-200 Evaluation Kit | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Number of A/D Converters | 1 | |
| Number of Bits | 16 | |
| Sampling Rate (Per Second) | 200M | |
| Data Interface | LVDS - Parallel, Serial | |
| Input Range | 2.975 Vpp | |
| Power (Typ) @ Conditions | 511mW @ 200MSPS | |
| Utilized IC / Part | MCP37D31-200 | |
| Supplied Contents | Board, Power Supply | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00505 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00505 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00505 is new and unused, you can buy ADM00505 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00505.
