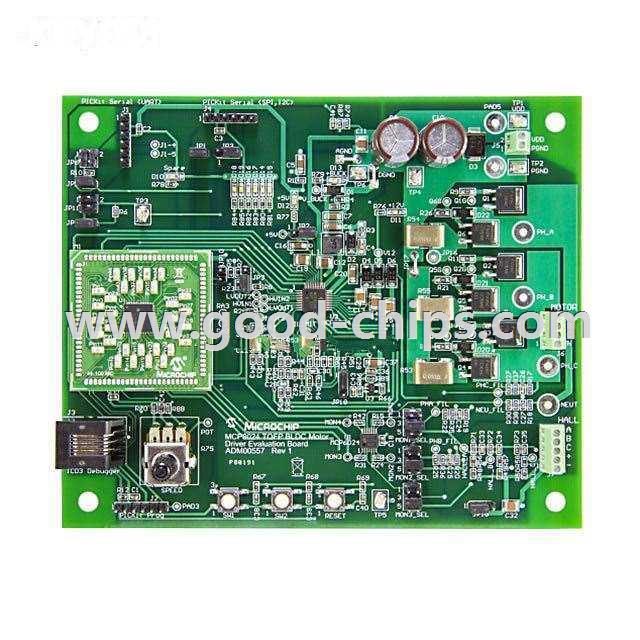

| Manufacturer Part Number: | ADM00557 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |
| Description: | dsPIC33FJ32MC204, MCP8024 - Power Management, Motor Control Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADM00557 Datasheet |
| Internal Part Number | 898-ADM00557 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | MCP8024 Eval Brd (ADM00557) Schematics Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MCP8024 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | Power Management, Motor Control | |
| Embedded | Yes, MCU, 16-Bit | |
| Utilized IC / Part | dsPIC33FJ32MC204, MCP8024 | |
| Primary Attributes | 3-Ph Brushless DC (BLDC) Motors | |
| Secondary Attributes | I²C and SPI Interfaces | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADM00557 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADM00557 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ADM00557 is new and unused, you can buy ADM00557 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADM00557.
