| Manufacturer Part Number: | ADP2504CPZ-REDYKIT |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

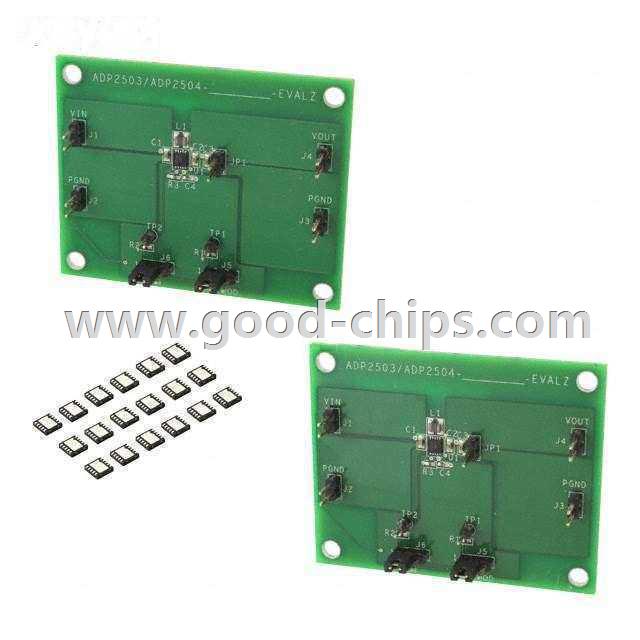

| Description: | ADP2504 DC/DC, Step Up or Down Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADP2504CPZ-REDYKIT Datasheet |
| Internal Part Number | 898-ADP2504CPZ-REDYKIT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Online Catalog | ADP2504 RedyKit™ Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | Analog Devices Inc. | |
| Series | RedyKit™ | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Up or Down | |
| Outputs and Type | - | |
| Power - Output | - | |
| Voltage - Output | - | |
| Current - Output | 1A | |
| Voltage - Input | 2.5 V ~ 5.5 V | |
| Regulator Topology | Buck-Boost | |
| Frequency - Switching | 2.5MHz | |
| Board Type | Fully Populated | |
| Supplied Contents | 2 Boards, Samples | |
| Utilized IC / Part | ADP2504 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADP2504CPZ-REDYKIT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADP2504CPZ-REDYKIT is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of ADP2504CPZ-REDYKIT is new and unused, you can buy ADP2504CPZ-REDYKIT Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADP2504CPZ-REDYKIT.
