| Manufacturer Part Number: | ADP3118JCPZ-RL |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MOSFET DRIVER DUAL 12V 8LFCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ADP3118JCPZ-RL Datasheet |
| Internal Part Number | 898-ADP3118JCPZ-RL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | PTC Devices 25/Aug/2008 | |
| PCN Part Number | ADI to ON Semi 19/Dec/2007 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Driven Configuration | Half-Bridge | |
| Channel Type | Synchronous | |
| Number of Drivers | 2 | |
| Gate Type | N-Channel MOSFET | |
| Voltage - Supply | 4.15 V ~ 13.2 V | |
| Logic Voltage - VIL, VIH | 0.8V, 2V | |
| Current - Peak Output (Source, Sink) | - | |
| Input Type | Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | 25V | |
| Rise / Fall Time (Typ) | 25ns, 20ns | |
| Operating Temperature | 0°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

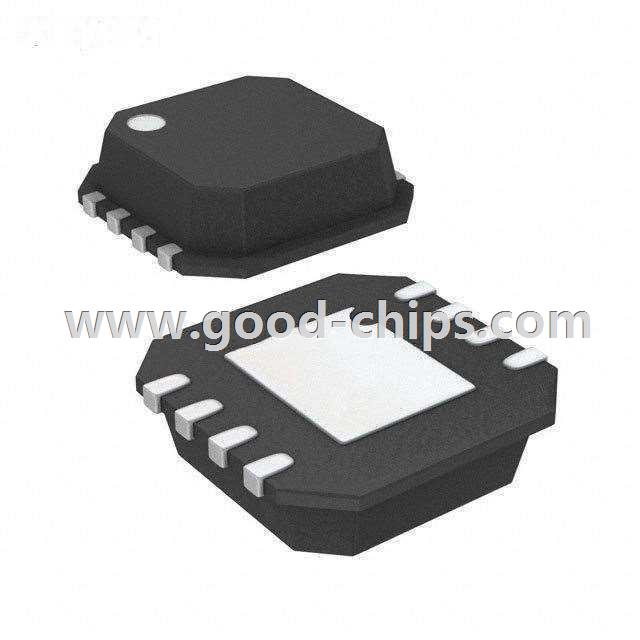

| Package / Case | 8-VFDFN Exposed Pad, CSP | |
| Supplier Device Package | 8-LFCSP (3x3) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ADP3118JCPZ-RL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ADP3118JCPZ-RL is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of ADP3118JCPZ-RL is new and unused, you can buy ADP3118JCPZ-RL ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ADP3118JCPZ-RL.
