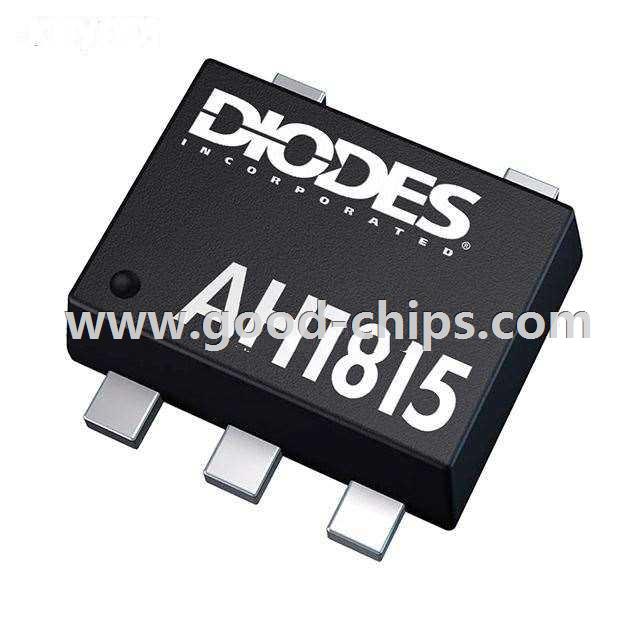

| Manufacturer Part Number: | AH1815-Z-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | Magnetic Sensors - Switches (Solid State) |
| Available Quantity: | 11905 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC HALL SENSR OMNIPLOR SW |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AH1815-Z-7 Datasheet |
| Internal Part Number | 898-AH1815-Z-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AH1815 Ultra-Low-Sensitivity, Micropower, Omnipolar Hall Effect Switch | |
| Online Catalog | AH1815 | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Switches (Solid State) | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Function | Omnipolar Switch | |
| Technology | Hall Effect | |
| Polarization | Either | |
| Sensing Range | ±54mT Trip, ±49mT Release | |
| Test Condition | -40°C ~ 125°C | |
| Voltage - Supply | 2.5 V ~ 5.5 V | |
| Current - Supply (Max) | 12mA | |
| Current - Output (Max) | 2.5mA | |
| Output Type | Open Drain | |
| Features | Sleep Mode | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Package / Case | SOT-553 | |
| Supplier Device Package | SOT-553 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AH1815-Z-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AH1815-Z-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AH1815-Z-7 is new and unused, you can buy AH1815-Z-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AH1815-Z-7.
