Manufacturer Part Number: | AIAP-03-151K |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 32344 Pieces |
Unit Price: | Quote by Email |

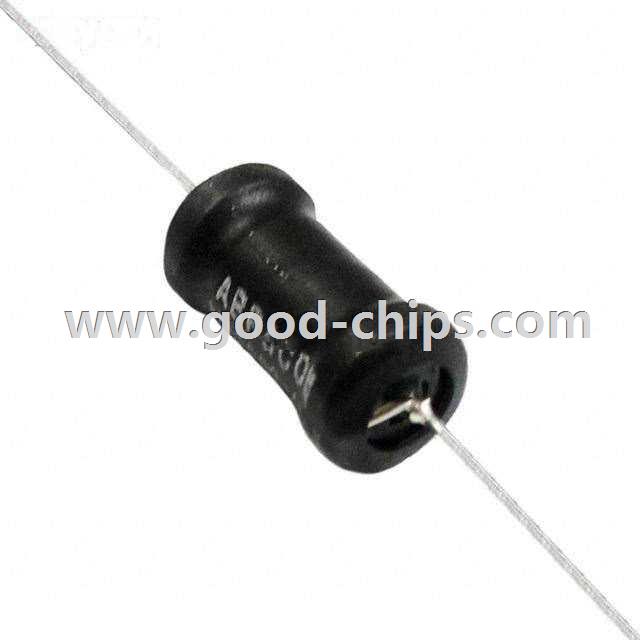

Description: | 150µH Unshielded Wirewound Inductor 2.22A 129 mOhm Max Axial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AIAP-03-151K Datasheet |
Internal Part Number | 898-AIAP-03-151K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AIAP-03.pdf AIAP-03.stp | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Abracon LLC | |
Series | AIAP-03 | |
Packaging | Bulk | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | - | |
Inductance | 150µH | |
Tolerance | ±10% | |
Current Rating | 2.22A | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 129 mOhm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 1kHz | |
Mounting Type | Through Hole | |
Package / Case | Axial | |
Size / Dimension | 0.450" Dia x 0.900" L (11.40mm x 22.90mm) | |
Height - Seated (Max) | - | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AIAP-03-151K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AIAP-03-151K is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AIAP-03-151K is new and unused, you can buy AIAP-03-151K Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AIAP-03-151K.
