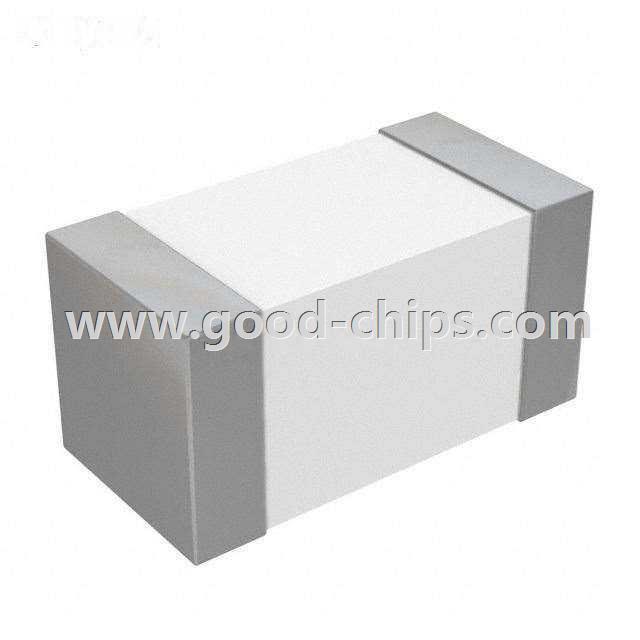

| Manufacturer Part Number: | AIMC-0201-10NJ-T |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Fixed Inductors |
| Available Quantity: | 24010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10nH Unshielded Multilayer Inductor 200mA 800 mOhm Max 0201 (0603 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AIMC-0201-10NJ-T Datasheet |
| Internal Part Number | 898-AIMC-0201-10NJ-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AIMC-0201.pdf AIMC-0201.stp | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | AIMC Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Abracon LLC | |
| Series | AIMC-0201 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Multilayer | |
| Material - Core | Ceramic | |
| Inductance | 10nH | |
| Tolerance | ±5% | |
| Current Rating | 200mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 800 mOhm Max | |
| Q @ Freq | 5 @ 100MHz | |
| Frequency - Self Resonant | 5.5GHz | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 100MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0201 (0603 Metric) | |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) | |
| Height - Seated (Max) | 0.014" (0.35mm) | |
| Standard Package | 15,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AIMC-0201-10NJ-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AIMC-0201-10NJ-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AIMC-0201-10NJ-T is new and unused, you can buy AIMC-0201-10NJ-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AIMC-0201-10NJ-T.
