Manufacturer Part Number: | AISC-1210H-331K-T |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

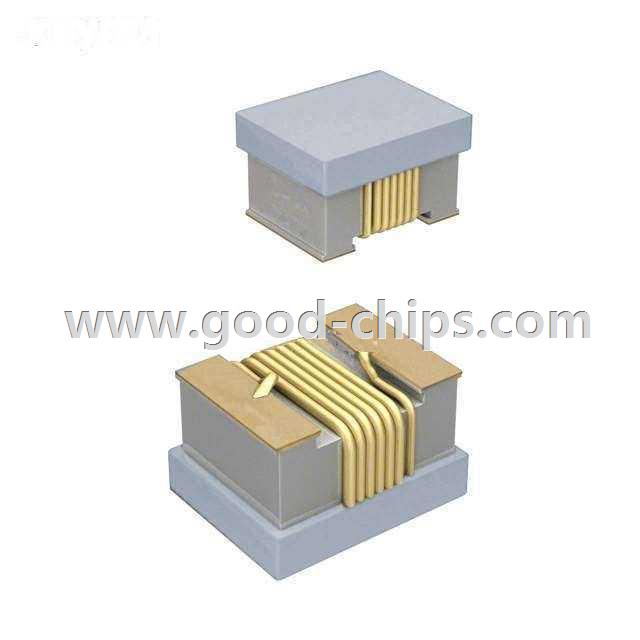

Description: | 330µH Unshielded Wirewound Inductor 60mA 18.9 Ohm Max 1210 (3225 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AISC-1210H-331K-T Datasheet |
Internal Part Number | 898-AISC-1210H-331K-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | AISC-1210H.pdf AISC-1210H.stp | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Abracon LLC | |
Series | AISC-1210H | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 330µH | |
Tolerance | ±10% | |
Current Rating | 60mA | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 18.9 Ohm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | 5.6MHz | |
Ratings | - | |
Operating Temperature | -25°C ~ 85°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | 1210 (3225 Metric) | |
Size / Dimension | 0.138" L x 0.098" W (3.50mm x 2.50mm) | |
Height - Seated (Max) | 0.098" (2.50mm) | |
Standard Package | 1,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AISC-1210H-331K-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AISC-1210H-331K-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AISC-1210H-331K-T is new and unused, you can buy AISC-1210H-331K-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AISC-1210H-331K-T.
