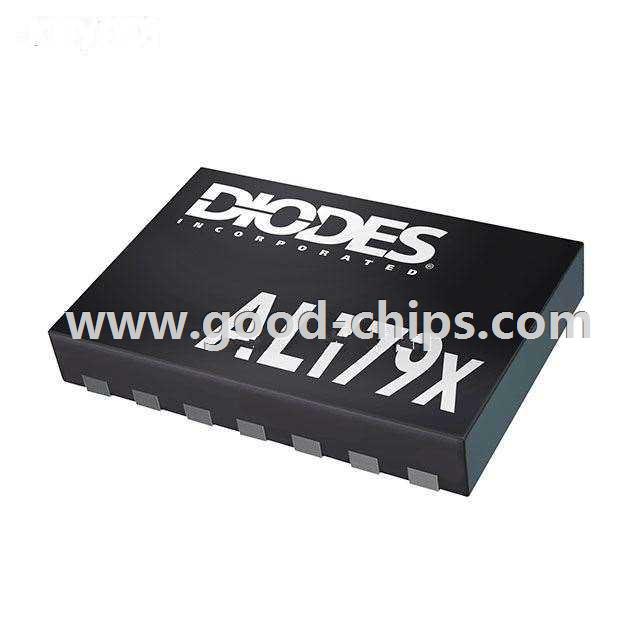

| Manufacturer Part Number: | AL1792AFE-13 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 2 Output Linear Analog, PWM Dimming 500mA U-DFN4030-14 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AL1792AFE-13 Datasheet |
| Internal Part Number | 898-AL1792AFE-13 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Featured Product | AL179x LED Drivers | |
| Online Catalog | Linear | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Linear | |
| Topology | - | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 2 | |
| Voltage - Supply (Min) | 6.5V | |
| Voltage - Supply (Max) | 30V | |
| Voltage - Output | 30V | |
| Current - Output / Channel | 500mA | |
| Frequency | - | |
| Dimming | Analog, PWM | |
| Applications | Lighting | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-UFDFN Exposed Pad | |
| Supplier Device Package | U-DFN4030-14 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AL1792AFE-13 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AL1792AFE-13 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AL1792AFE-13 is new and unused, you can buy AL1792AFE-13 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AL1792AFE-13.
