| Manufacturer Part Number: | ALD2701BPAL |
|---|---|
| Manufacturer: | Advanced Linear Devices Inc. |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Amplifier 2 Circuit Rail-to-Rail 8-PDIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ALD2701BPAL Datasheet |
| Internal Part Number | 898-ALD2701BPAL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Advanced Linear Devices Inc. | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Amplifier Type | General Purpose | |
| Number of Circuits | 2 | |
| Output Type | Rail-to-Rail | |
| Slew Rate | 1 V/µs | |
| Gain Bandwidth Product | 1MHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 1pA | |
| Voltage - Input Offset | 5mV | |
| Current - Supply | 240µA | |
| Current - Output / Channel | 1mA | |
| Voltage - Supply, Single/Dual (±) | 2 V ~ 12 V, ±1 V ~ 6 V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Through Hole | |

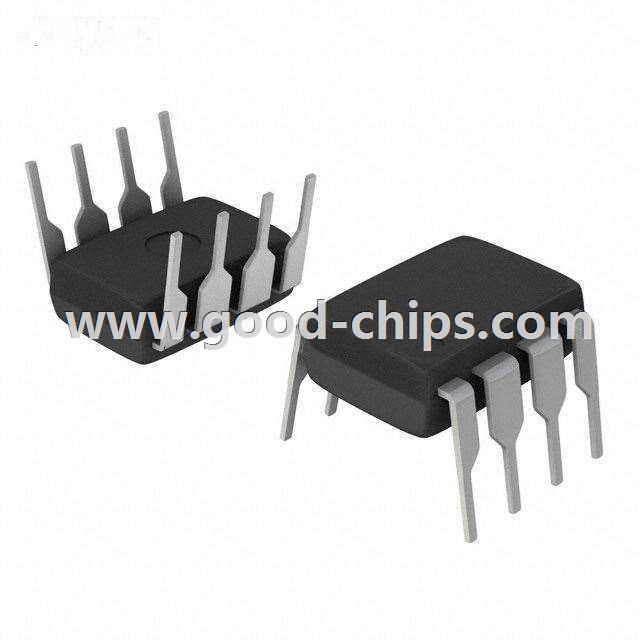

| Package / Case | 8-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 8-PDIP | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ALD2701BPAL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ALD2701BPAL is in stock for immediate shipping now. We are the distributor of Advanced Linear Devices Inc. all series components. The condition of ALD2701BPAL is new and unused, you can buy ALD2701BPAL Advanced Linear Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ALD2701BPAL.
