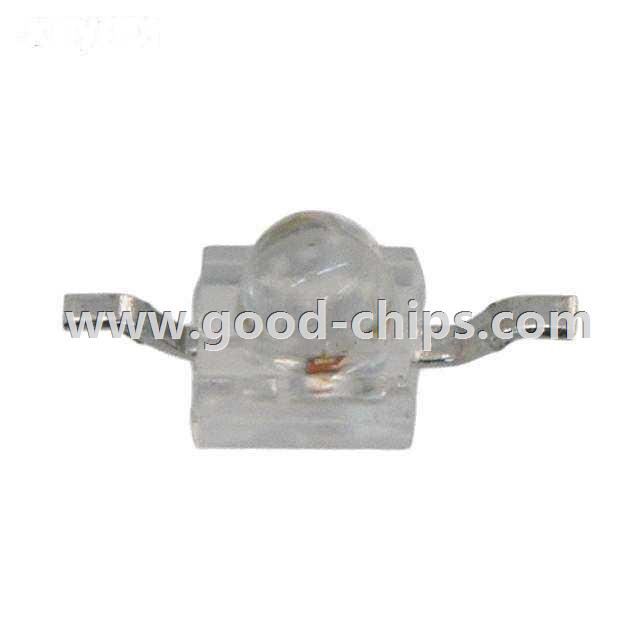

| Manufacturer Part Number: | AM2520ZGC03 |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 16010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Green 525nm LED Indication - Discrete 3.3V 2-SMD, Gull Wing |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AM2520ZGC03 Datasheet |
| Internal Part Number | 898-AM2520ZGC03 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AM2520x03.sldprt AM2520x03.pro AM2520x03.igs AM2520x03.stp | |
| Online Catalog | 2.5mm x 2.0mm Round with Domed Top 2-SMD Gull Wing Package LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Green | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 3000mcd | |
| Lens Style/Size | Round with Domed Top, 1.90mm | |
| Voltage - Forward (Vf) (Typ) | 3.3V | |
| Current - Test | 20mA | |
| Viewing Angle | 20° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 525nm | |
| Wavelength - Peak | 515nm | |
| Features | - | |
| Package / Case | 2-SMD, Gull Wing | |
| Supplier Device Package | SMD | |
| Size / Dimension | 2.50mm L x 2.00mm W | |
| Height (Max) | 2.90mm | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AM2520ZGC03 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AM2520ZGC03 is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of AM2520ZGC03 is new and unused, you can buy AM2520ZGC03 Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AM2520ZGC03.
