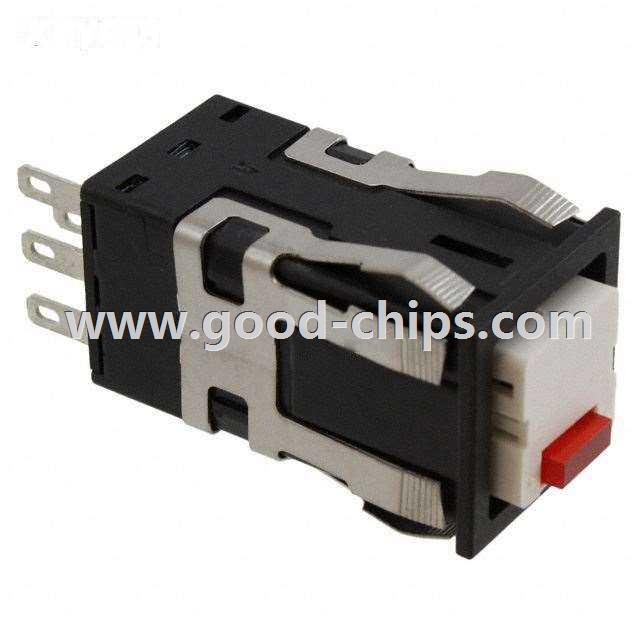

| Manufacturer Part Number: | AML22CBC2AA |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9013 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AML22CBC2AA Datasheet |
| Internal Part Number | 898-AML22CBC2AA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MICRO SWITCH™ AML Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | AML22 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard, Illuminated | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 3A (AC), 2A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 24V | |
| Actuator Type | Square, Button (Not Included) | |
| Color - Actuator/Cap | - | |
| Illumination Type, Color | LED, Red | |
| Illumination Voltage (Nominal) | 5 VDC | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | Square - 19.05mm² | |
| Operating Temperature | - | |
| Mechanical Life | 100,000 Cycles | |
| Electrical Life | 100,000 Cycles | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AML22CBC2AA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AML22CBC2AA is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of AML22CBC2AA is new and unused, you can buy AML22CBC2AA Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AML22CBC2AA.
