| Manufacturer Part Number: | AMS22B5A1BHASL1BBN |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Position Sensors - Angle, Linear Position Measuring |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

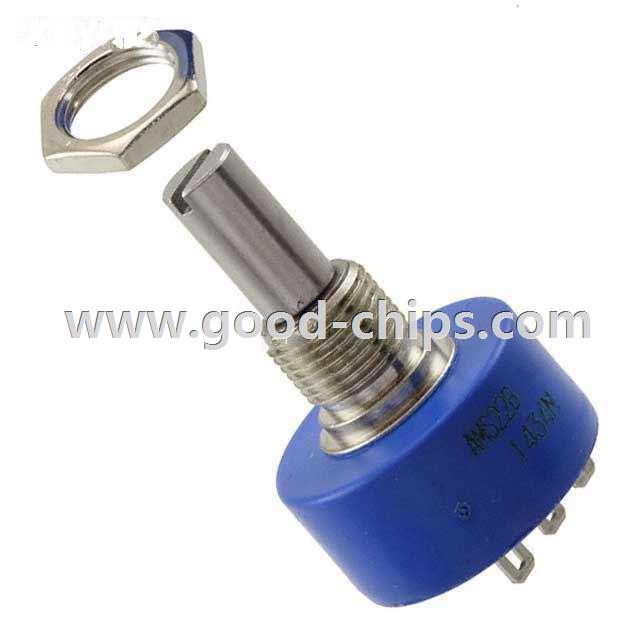

| Description: | Hall Effect Sensor Rotary Position Slotted Shaft Solder Lug |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AMS22B5A1BHASL1BBN Datasheet |
| Internal Part Number | 898-AMS22B5A1BHASL1BBN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AMM/AMS Rotary Position Sensors | |
| 3D Model | AMS22BXA1yyySL.stp | |
| Category | Sensors, Transducers | |
| Family | Position Sensors - Angle, Linear Position Measuring | |
| Manufacturer | Bourns Inc. | |
| Series | AMS22B | |
| Part Status | Active | |
| For Measuring | Rotary Position | |
| Technology | Hall Effect | |
| Rotation Angle - Electrical, Mechanical | 10° ~ 45°, Continuous | |
| Linear Range | - | |
| Output | Analog Voltage | |
| Output Signal | Counterclockwise Increase | |
| Actuator Type | Slotted Shaft | |
| Linearity | ±0.5% | |
| Resistance (Ohms) | - | |
| Resistance Tolerance | - | |
| Voltage - Supply | 5V | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AMS22B5A1BHASL1BBN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AMS22B5A1BHASL1BBN is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of AMS22B5A1BHASL1BBN is new and unused, you can buy AMS22B5A1BHASL1BBN Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AMS22B5A1BHASL1BBN.
