Manufacturer Part Number: | AMS22S5A1BLAFL321 |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Position Sensors - Angle, Linear Position Measuring |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

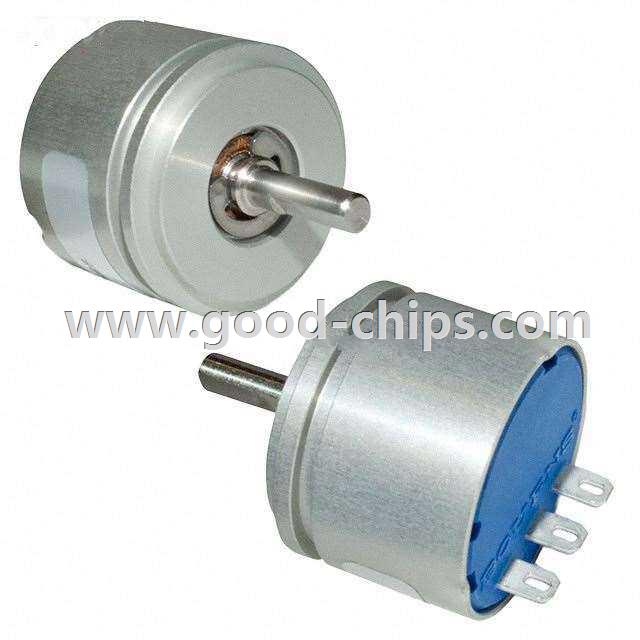

Description: | Hall Effect Sensor Rotary Position Flatted Shaft Solder Lug |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AMS22S5A1BLAFL321 Datasheet |
Internal Part Number | 898-AMS22S5A1BLAFL321 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | AMM/AMS Rotary Position Sensors | |
3D Model | AMS22S.stp | |
Category | Sensors, Transducers | |
Family | Position Sensors - Angle, Linear Position Measuring | |
Manufacturer | Bourns Inc. | |
Series | AMS22S | |
Part Status | Active | |
For Measuring | Rotary Position | |
Technology | Hall Effect | |
Rotation Angle - Electrical, Mechanical | 10° ~ 210°, Continuous | |
Linear Range | - | |
Output | Analog Voltage | |
Output Signal | Clockwise Increase | |
Actuator Type | Flatted Shaft | |
Linearity | ±0.5% | |
Resistance (Ohms) | - | |
Resistance Tolerance | - | |
Voltage - Supply | 5V | |
Mounting Type | Panel Mount | |
Termination Style | Solder Lug | |
Operating Temperature | -40°C ~ 125°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AMS22S5A1BLAFL321 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AMS22S5A1BLAFL321 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of AMS22S5A1BLAFL321 is new and unused, you can buy AMS22S5A1BLAFL321 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AMS22S5A1BLAFL321.
