| Manufacturer Part Number: | AN44075A-VF |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver BiCDMOS Parallel 34-HSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AN44075A-VF Datasheet |
| Internal Part Number | 898-AN44075A-VF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Wearables Technology Components | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushed DC | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (2) | |
| Interface | Parallel | |
| Technology | BiCDMOS | |
| Step Resolution | - | |
| Applications | General Purpose | |
| Current - Output | 3A | |
| Voltage - Supply | 10 V ~ 35 V | |
| Voltage - Load | 10 V ~ 35 V | |
| Operating Temperature | -20°C ~ 70°C (TA) | |
| Mounting Type | Surface Mount | |

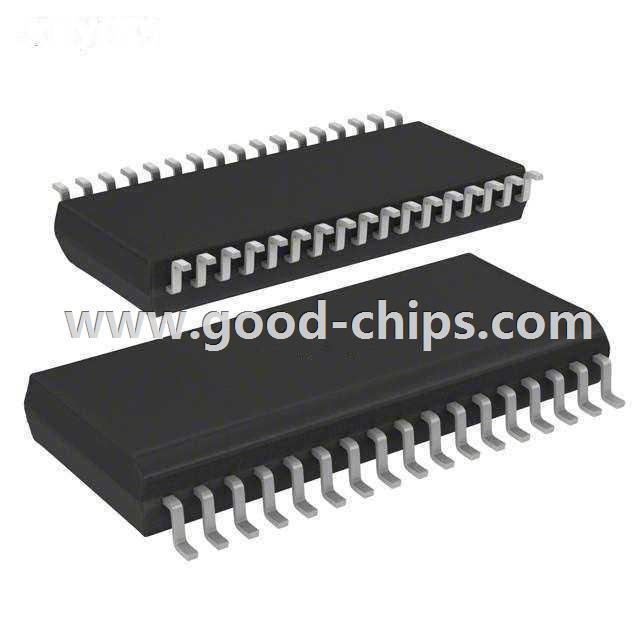

| Package / Case | 34-TSOP (0.240", 6.10mm Width) Exposed Pad | |
| Supplier Device Package | 34-HSOP | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AN44075A-VF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AN44075A-VF is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of AN44075A-VF is new and unused, you can buy AN44075A-VF Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AN44075A-VF.
