| Manufacturer Part Number: | AN48810B-NL |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Magnetic Sensors - Switches (Solid State) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC HALL SENSOR UNIDIRECT SMINI-5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AN48810B-NL Datasheet |
| Internal Part Number | 898-AN48810B-NL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Switches (Solid State) | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Function | Unipolar Switch | |
| Technology | Hall Effect | |
| Polarization | South Pole | |
| Sensing Range | 6mT Trip, 0.5mT Release | |
| Test Condition | 25°C | |
| Voltage - Supply | 2.5 V ~ 3.5 V | |
| Current - Supply (Max) | 15µA | |
| Current - Output (Max) | 15mA | |
| Output Type | Push-Pull | |
| Features | - | |
| Operating Temperature | -20°C ~ 75°C (TA) | |
| Package / Case | 6-SMD (5 Leads), Flat Lead | |

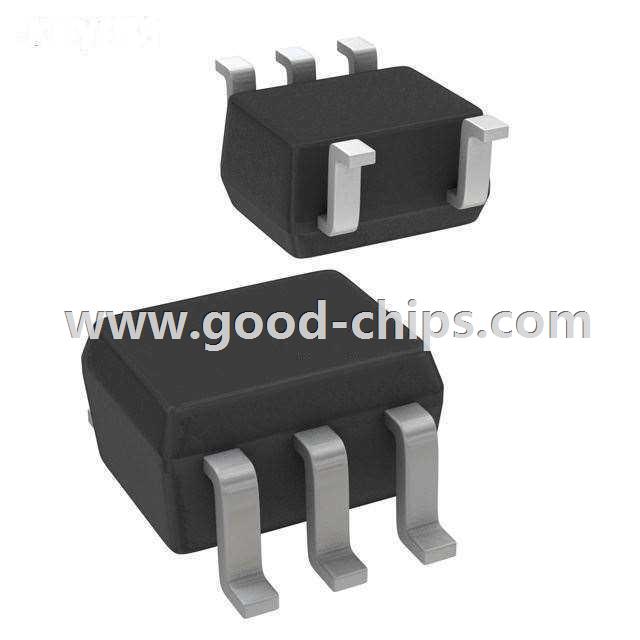

| Supplier Device Package | SMINI-5DA | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AN48810B-NL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AN48810B-NL is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of AN48810B-NL is new and unused, you can buy AN48810B-NL Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AN48810B-NL.
