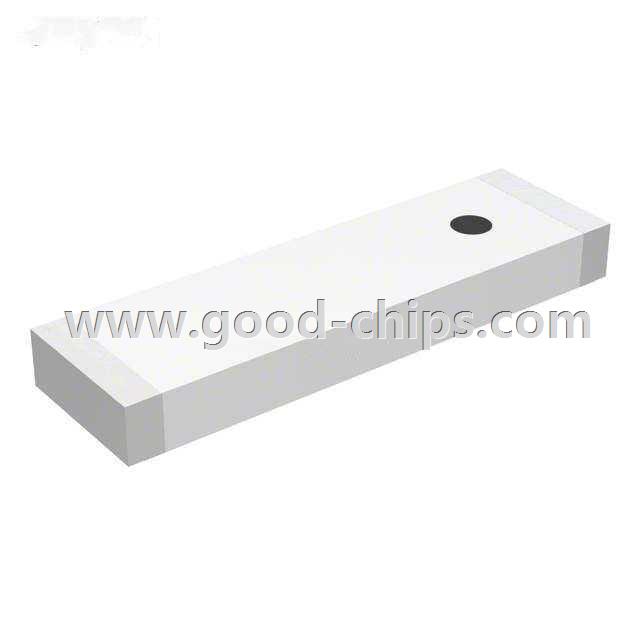

| Manufacturer Part Number: | ANT7020LL05R2400A |
|---|---|
| Manufacturer: | Yageo |
| Product Category: | RF Antennas |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.4GHz Bluetooth, WLAN, Zigbee™ Chip RF Antenna 2.2GHz ~ 2.7GHz 2.62dBi Solder Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ANT7020LL05R2400A Datasheet |
| Internal Part Number | 898-ANT7020LL05R2400A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Wireless Components | |
| Design Resources | IoT Product Selector | |
| Featured Product | 2.4/5 GHz - Wireless Components | |
| Online Catalog | Yageo - Embedded | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Yageo | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency Group | UHF (2 GHz ~ 3 GHz) | |
| Frequency (Center/Band) | 2.4GHz | |
| Frequency Range | 2.2GHz ~ 2.7GHz | |
| Antenna Type | Chip | |
| Number of Bands | 1 | |
| VSWR | - | |
| Return Loss | -10dB | |
| Gain | 2.62dBi | |
| Power - Max | 1W | |
| Features | - | |
| Termination | Solder | |
| Ingress Protection | - | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.030" (0.75mm) | |
| Applications | Bluetooth, WLAN, Zigbee™ | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ANT7020LL05R2400A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ANT7020LL05R2400A is in stock for immediate shipping now. We are the distributor of Yageo all series components. The condition of ANT7020LL05R2400A is new and unused, you can buy ANT7020LL05R2400A Yageo with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ANT7020LL05R2400A.
