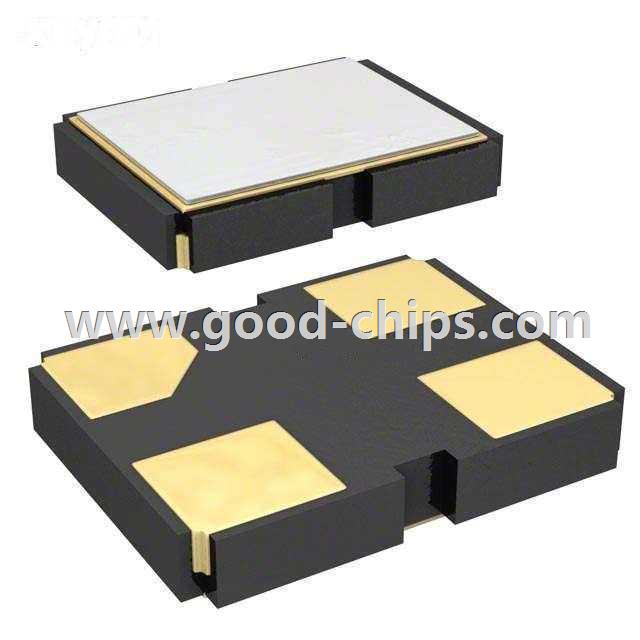

| Manufacturer Part Number: | AP2S1ER |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Programmable Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3MHz ~ 90MHz CMOS XO (Standard) Programmable Oscillator Surface Mount 2.5V 15mA Standby |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP2S1ER Datasheet |
| Internal Part Number | 898-AP2S1ER | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | AP2S.pdf AP2S.stp | |
| Online Catalog | AP2S and AP3S Series with Ordering Guide | |
| Category | Crystals and Oscillators | |
| Family | Programmable Oscillators | |
| Manufacturer | Abracon LLC | |
| Series | AP2S | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | XO (Standard) | |
| Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
| Available Frequency Range | 3MHz ~ 90MHz | |
| Function | Standby | |
| Output | CMOS | |
| Voltage - Supply | 2.5V | |
| Frequency Stability | - | |
| Frequency Stability (Total) | ±25ppm | |
| Operating Temperature | -20°C ~ 70°C | |
| Spread Spectrum Bandwidth | - | |
| Current - Supply (Max) | 15mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height | 0.035" (0.90mm) | |
| Current - Supply (Disable) (Max) | - | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP2S1ER | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP2S1ER is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of AP2S1ER is new and unused, you can buy AP2S1ER Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP2S1ER.
