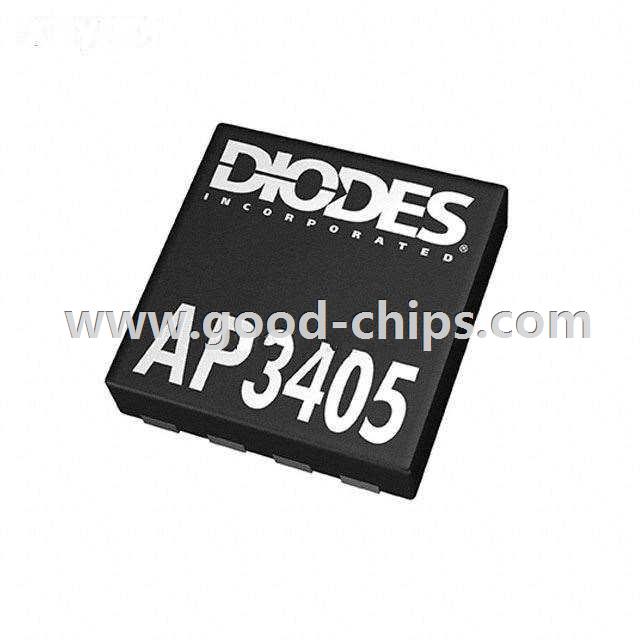

| Manufacturer Part Number: | AP3405SHE-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Adjustable 0.7V 1 Output 600mA 8-UFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP3405SHE-7 Datasheet |
| Internal Part Number | 898-AP3405SHE-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AP3405 Step-Down DC-DC Converter | |
| Online Catalog | Buck (Step-Down) IC | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 2.3V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 0.7V | |
| Voltage - Output (Max) | 5.5V | |
| Current - Output | 600mA | |
| Frequency - Switching | 2MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-UFDFN Exposed Pad | |
| Supplier Device Package | U-DFN2020-8 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP3405SHE-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP3405SHE-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP3405SHE-7 is new and unused, you can buy AP3405SHE-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP3405SHE-7.
