| Manufacturer Part Number: | APT70GR120JD60 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9026 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module NPT Single 1200V 112A 543W Chassis Mount SOT-227 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APT70GR120JD60 Datasheet |
| Internal Part Number | 898-APT70GR120JD60 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Ultra Fast NPT-IGBT® Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | NPT | |
| Configuration | Single | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 112A | |
| Power - Max | 543W | |
| Vce(on) (Max) @ Vge, Ic | 3.2V @ 15V, 70A | |
| Current - Collector Cutoff (Max) | 1.1mA | |
| Input Capacitance (Cies) @ Vce | 7.26nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |

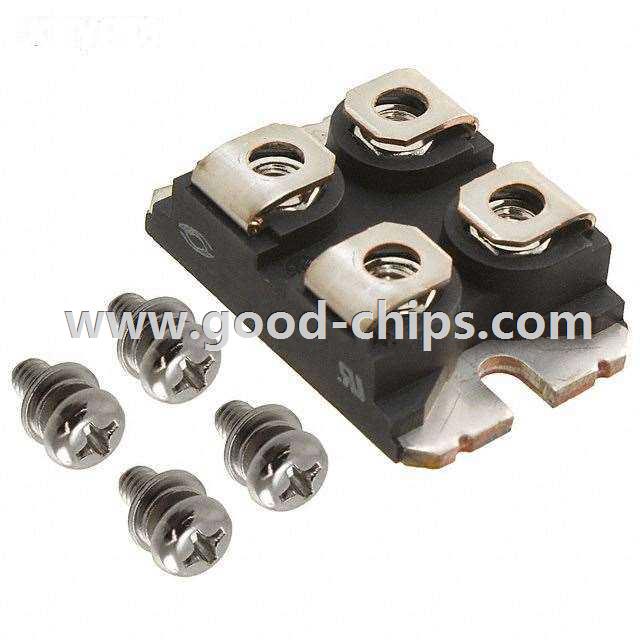

| Package / Case | SOT-227-4 | |
| Supplier Device Package | SOT-227 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APT70GR120JD60 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APT70GR120JD60 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APT70GR120JD60 is new and unused, you can buy APT70GR120JD60 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APT70GR120JD60.
