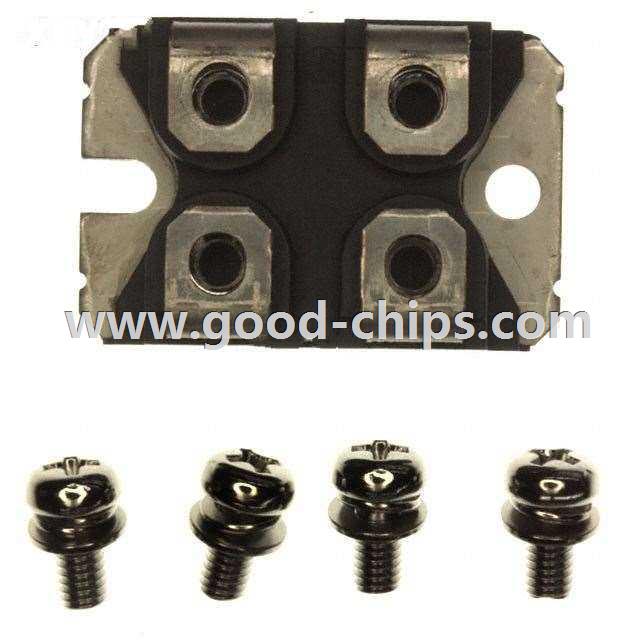

| Manufacturer Part Number: | APT75GP120J |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9145 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module PT Single 1200V 128A 543W Chassis Mount ISOTOP® |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APT75GP120J Datasheet |
| Internal Part Number | 898-APT75GP120J | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Power MOS 7® IGBT Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | POWER MOS 7® | |
| Part Status | Active | |
| IGBT Type | PT | |
| Configuration | Single | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 128A | |
| Power - Max | 543W | |
| Vce(on) (Max) @ Vge, Ic | 3.9V @ 15V, 75A | |
| Current - Collector Cutoff (Max) | 1mA | |
| Input Capacitance (Cies) @ Vce | 7.04nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |
| Package / Case | ISOTOP | |
| Supplier Device Package | ISOTOP® | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APT75GP120J | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APT75GP120J is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APT75GP120J is new and unused, you can buy APT75GP120J Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APT75GP120J.
