| Manufacturer Part Number: | APTGF150A120TG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

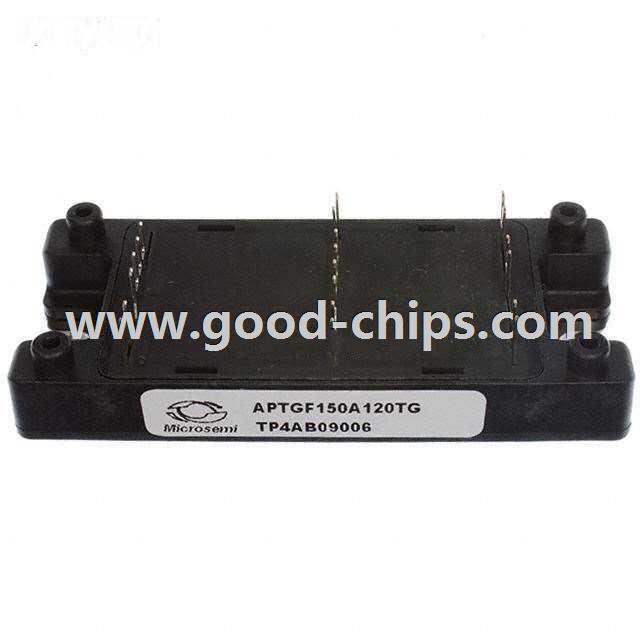

| Description: | IGBT Module NPT Half Bridge 1200V 200A 961W Chassis Mount SP4 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGF150A120TG Datasheet |
| Internal Part Number | 898-APTGF150A120TG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Part Status Change | Power Module Disc 23/Mar/2016 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Not For New Designs | |
| IGBT Type | NPT | |
| Configuration | Half Bridge | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 200A | |
| Power - Max | 961W | |
| Vce(on) (Max) @ Vge, Ic | 3.7V @ 15V, 150A | |
| Current - Collector Cutoff (Max) | 350µA | |
| Input Capacitance (Cies) @ Vce | 10.2nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | Yes | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP4 | |
| Supplier Device Package | SP4 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGF150A120TG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGF150A120TG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGF150A120TG is new and unused, you can buy APTGF150A120TG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGF150A120TG.
