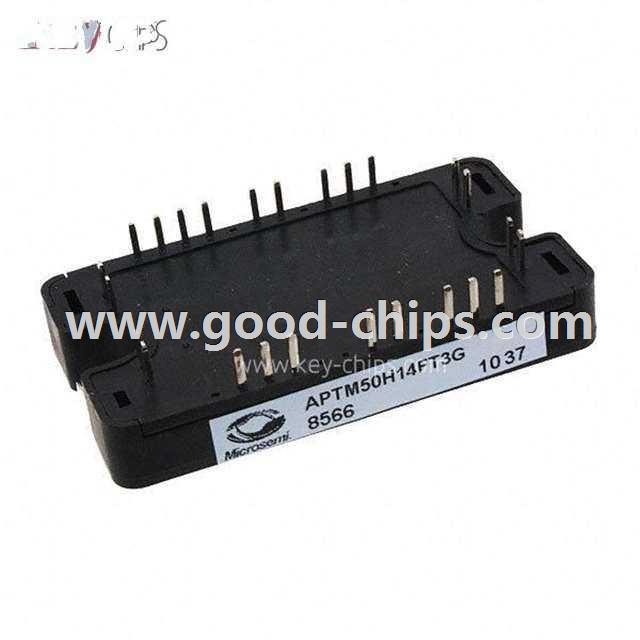

| Manufacturer Part Number: | APTM50H14FT3G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Arrays |
| Available Quantity: | 9025 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET 4N-CH 500V 26A SP3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTM50H14FT3G Datasheet |
| Internal Part Number | 898-APTM50H14FT3G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | SP3F Plastic Frame Update 16/Jul/2015 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Arrays | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| FET Type | 4 N-Channel (H-Bridge) | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 500V | |
| Current - Continuous Drain (Id) @ 25°C | 26A | |
| Rds On (Max) @ Id, Vgs | 168 mOhm @ 13A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 1mA | |
| Gate Charge (Qg) @ Vgs | 72nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 3259pF @ 25V | |
| Power - Max | 208W | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP3 | |
| Supplier Device Package | SP3 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTM50H14FT3G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTM50H14FT3G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTM50H14FT3G is new and unused, you can buy APTM50H14FT3G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTM50H14FT3G.
