| Manufacturer Part Number: | APV1121SX |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 17010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Photovoltaic Output 2500Vrms 1 Channel 4-SOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APV1121SX Datasheet |
| Internal Part Number | 898-APV1121SX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | How to Read Date Codes | |
| Online Catalog | APV1121, 1122, 2111, 2121 Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Panasonic Electric Works | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 2500Vrms | |
| Current Transfer Ratio (Min) | - | |
| Current Transfer Ratio (Max) | - | |
| Turn On / Turn Off Time (Typ) | 400µs, 100µs | |
| Rise / Fall Time (Typ) | - | |
| Input Type | DC | |
| Output Type | Photovoltaic | |
| Voltage - Output (Max) | 8.7V | |
| Current - Output / Channel | 14µA | |
| Voltage - Forward (Vf) (Typ) | 1.15V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Vce Saturation (Max) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

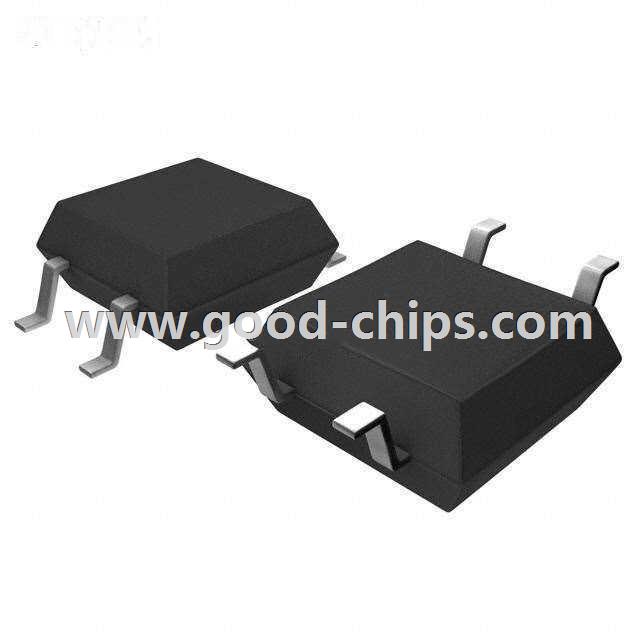

| Package / Case | 4-SMD, Gull Wing | |
| Supplier Device Package | 4-SOP | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APV1121SX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APV1121SX is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of APV1121SX is new and unused, you can buy APV1121SX Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APV1121SX.
