| Manufacturer Part Number: | AQV257MA |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Solid State Relays |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Solid State Relay SPST-NO (1 Form A) 6-SMD (0.300", 7.62mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AQV257MA Datasheet |
| Internal Part Number | 898-AQV257MA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | How to Read Date Codes | |
| Design Resources | PhotoMOS Schematic & Wiring Diagrams | |
| Category | Relays | |
| Family | Solid State Relays | |
| Manufacturer | Panasonic Electric Works | |
| Series | PhotoMOS™ AQV | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Circuit | SPST-NO (1 Form A) | |
| Output Type | AC, DC | |
| On-State Resistance (Max) | 4 Ohm | |
| Load Current | 250mA | |
| Voltage - Input | 1.14VDC | |
| Voltage - Load | 0 ~ 200 V | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |

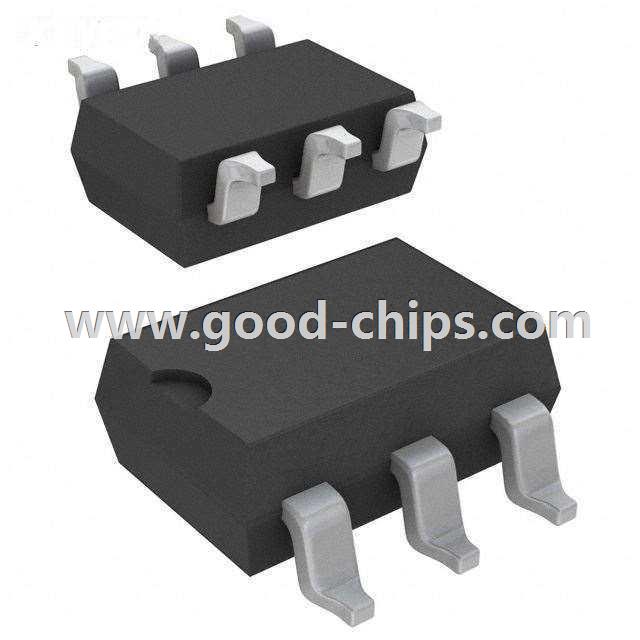

| Package / Case | 6-SMD (0.300", 7.62mm) | |
| Supplier Device Package | 6-SMD | |
| Relay Type | Relay | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AQV257MA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AQV257MA is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of AQV257MA is new and unused, you can buy AQV257MA Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AQV257MA.
