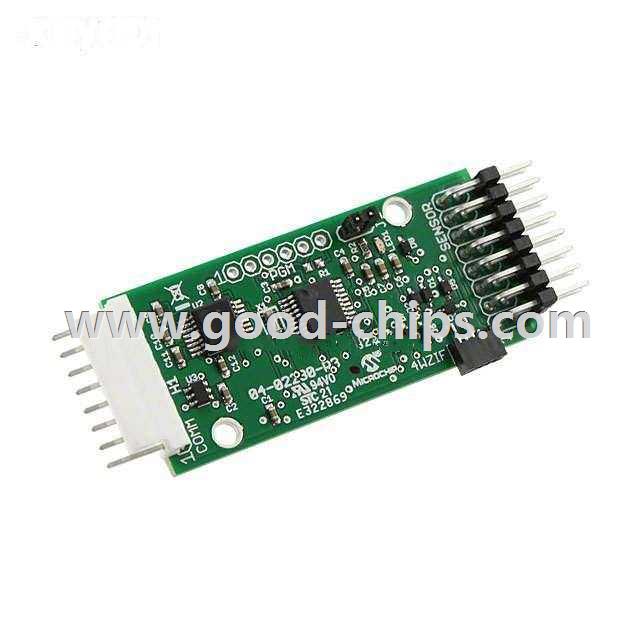

Manufacturer Part Number: | AR1100BRD |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Data Acquisition - Touch Screen Controllers |
Available Quantity: | 9158 Pieces |
Unit Price: | Quote by Email |
Description: | Touchscreen Controller 4-Wire, 5-Wire, 8-Wire 10 bit USB Interface Module |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AR1100BRD Datasheet |
Internal Part Number | 898-AR1100BRD | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | mTouch Capacitive Touch Sensing | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | Resistive | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Touch Screen Controllers | |
Manufacturer | Microchip Technology | |
Series | mTouch™ | |
Packaging | Bulk | |
Part Status | Active | |
Type | Resistive, USB, RS232 | |
Touch Panel Interface | 4-Wire, 5-Wire, 8-Wire | |
Number of Inputs/Keys | 1 TSC | |
Resolution (Bits) | 10 b | |
Evaluation Tools | * | |
Data Interface | USB | |
Data Rate/Sampling Rate (SPS, BPS) | - | |
Voltage Reference | External | |
Voltage - Supply | 3.3 V ~ 5 V | |
Current - Supply | 25mA | |
Operating Temperature | -25°C ~ 85°C | |
Mounting Type | - | |
Package / Case | Module | |
Supplier Device Package | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AR1100BRD | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AR1100BRD is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of AR1100BRD is new and unused, you can buy AR1100BRD Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AR1100BRD.
