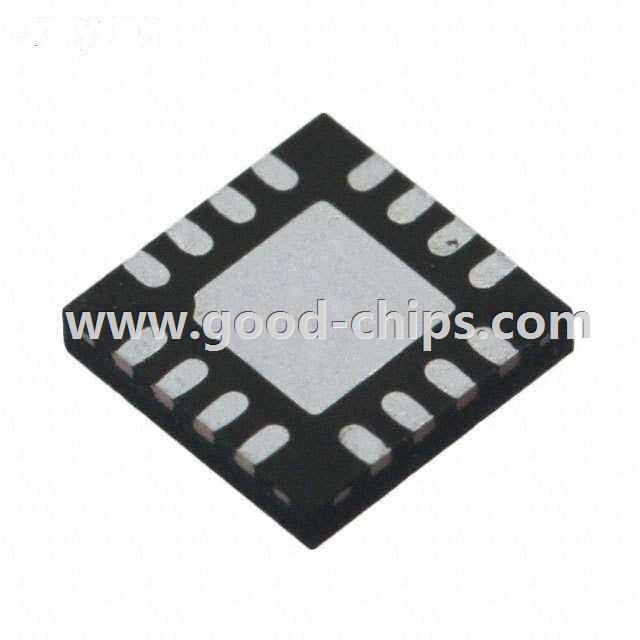

| Manufacturer Part Number: | AS1109-BQFR |
|---|---|
| Manufacturer: | ams |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 10051 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 8 Output Linear Shift Register 100mA 16-QFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AS1109-BQFR Datasheet |
| Internal Part Number | 898-AS1109-BQFR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Featured Product | AS1109 8-Bit LED Drivers | |
| Online Catalog | Linear | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | ams | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Linear | |
| Topology | Shift Register | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 8 | |
| Voltage - Supply (Min) | 3V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 15V | |
| Current - Output / Channel | 100mA | |
| Frequency | 50MHz | |
| Dimming | - | |
| Applications | Signage | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-WQFN Exposed Pad | |
| Supplier Device Package | 16-QFN (4x4) | |
| Standard Package | 490 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AS1109-BQFR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AS1109-BQFR is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1109-BQFR is new and unused, you can buy AS1109-BQFR ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1109-BQFR.
