| Manufacturer Part Number: | AS1545 |
|---|---|
| Manufacturer: | ams |
| Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 12 Bit Analog to Digital Converter 6, 12 Input 2 SAR 32-TQFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AS1545 Datasheet |
| Internal Part Number | 898-AS1545 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Data Acquisition - Analog to Digital Converters (ADC) | |
| Manufacturer | ams | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Number of Bits | 12 | |
| Sampling Rate (Per Second) | 1M | |
| Number of Inputs | 6, 12 | |
| Input Type | Differential, Pseudo-Differential, Single Ended | |
| Data Interface | SPI | |
| Configuration | MUX-S/H-ADC | |
| Ratio - S/H:ADC | 1:1 | |
| Number of A/D Converters | 2 | |
| Architecture | SAR | |
| Reference Type | External, Internal | |
| Voltage - Supply, Analog | 2.7 V ~ 5.25 V | |
| Voltage - Supply, Digital | 2.7 V ~ 5.25 V | |
| Features | Selectable Address, Simultaneous Sampling | |
| Operating Temperature | -40°C ~ 85°C | |

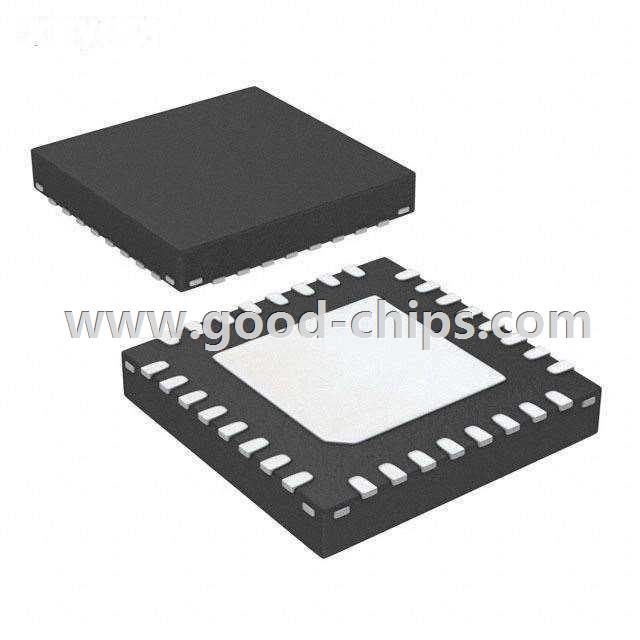

| Package / Case | 32-WFQFN Exposed Pad | |
| Supplier Device Package | 32-TQFN (5x5) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AS1545 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AS1545 is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1545 is new and unused, you can buy AS1545 ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1545.
