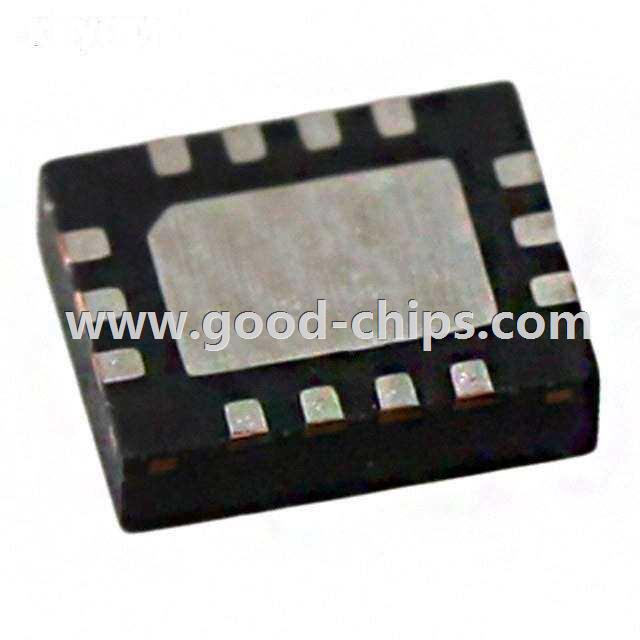

| Manufacturer Part Number: | ASEMDC1-ZR-T3 |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Pin Configurable Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 24MHz, 25MHz, 27MHz, 40MHz, 50MHz CMOS MEMS (Silicon) Pin Configurable Oscillator 14-VFQFN Exposed Pad 2.25 V ~ 3.6 V 32mA (Typ) Enable/Disable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASEMDC1-ZR-T3 Datasheet |
| Internal Part Number | 898-ASEMDC1-ZR-T3 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ASEMDC.pdf ASEMDC.stp | |
| Category | Crystals and Oscillators | |
| Family | Pin Configurable Oscillators | |
| Manufacturer | Abracon LLC | |
| Series | Pure Silicon™ ASEMDC | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | MEMS (Silicon) | |
| Frequency - Output 1 | 24MHz, 25MHz, 27MHz, 40MHz, 50MHz | |
| Frequency - Output 2 | 24MHz, 25MHz, 27MHz, 48MHz, 50MHz, 54MHz, 125MHz | |
| Function | Enable/Disable | |
| Output | CMOS | |
| Voltage - Supply | 2.25 V ~ 3.6 V | |
| Frequency Stability | ±25ppm | |
| Operating Temperature | -55°C ~ 125°C | |
| Current - Supply (Max) | 32mA (Typ) | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height | 0.035" (0.90mm) | |
| Package / Case | 14-VFQFN Exposed Pad | |
| Current - Supply (Disable) (Max) | 23mA | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASEMDC1-ZR-T3 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASEMDC1-ZR-T3 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASEMDC1-ZR-T3 is new and unused, you can buy ASEMDC1-ZR-T3 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASEMDC1-ZR-T3.
