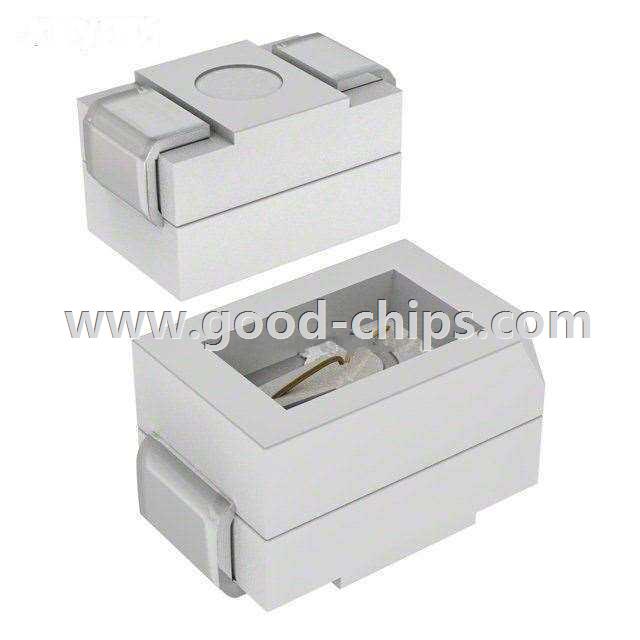

Manufacturer Part Number: | ASMT-TGBM-NT502 |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | LED Indication - Discrete |
Available Quantity: | 21010 Pieces |
Unit Price: | Quote by Email |
Description: | Green 522nm LED Indication - Discrete 3.3V 2-Mini PLCC |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ASMT-TGBM-NT502 Datasheet |
Internal Part Number | 898-ASMT-TGBM-NT502 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | PLCC LED Alternate Assembly Site 30/Jul/2014 | |
Online Catalog | 2-Mini PLCC Package Rectangle with Flat Top LEDs | |
Category | Optoelectronics | |
Family | LED Indication - Discrete | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Color | Green | |
Lens Color | Colorless | |
Lens Transparency | Clear | |
Millicandela Rating | 480mcd | |
Lens Style/Size | Rectangle with Flat Top, 1.50mm x 1.00mm | |
Voltage - Forward (Vf) (Typ) | 3.3V | |
Current - Test | 20mA | |
Viewing Angle | 120° | |
Mounting Type | Surface Mount | |
Wavelength - Dominant | 522nm | |
Wavelength - Peak | 516nm | |
Features | - | |
Package / Case | 2-Mini PLCC | |
Supplier Device Package | 2-MiniPLCC | |
Size / Dimension | 2.00mm L x 1.40mm W | |
Height (Max) | 1.50mm | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ASMT-TGBM-NT502 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ASMT-TGBM-NT502 is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of ASMT-TGBM-NT502 is new and unused, you can buy ASMT-TGBM-NT502 Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASMT-TGBM-NT502.
